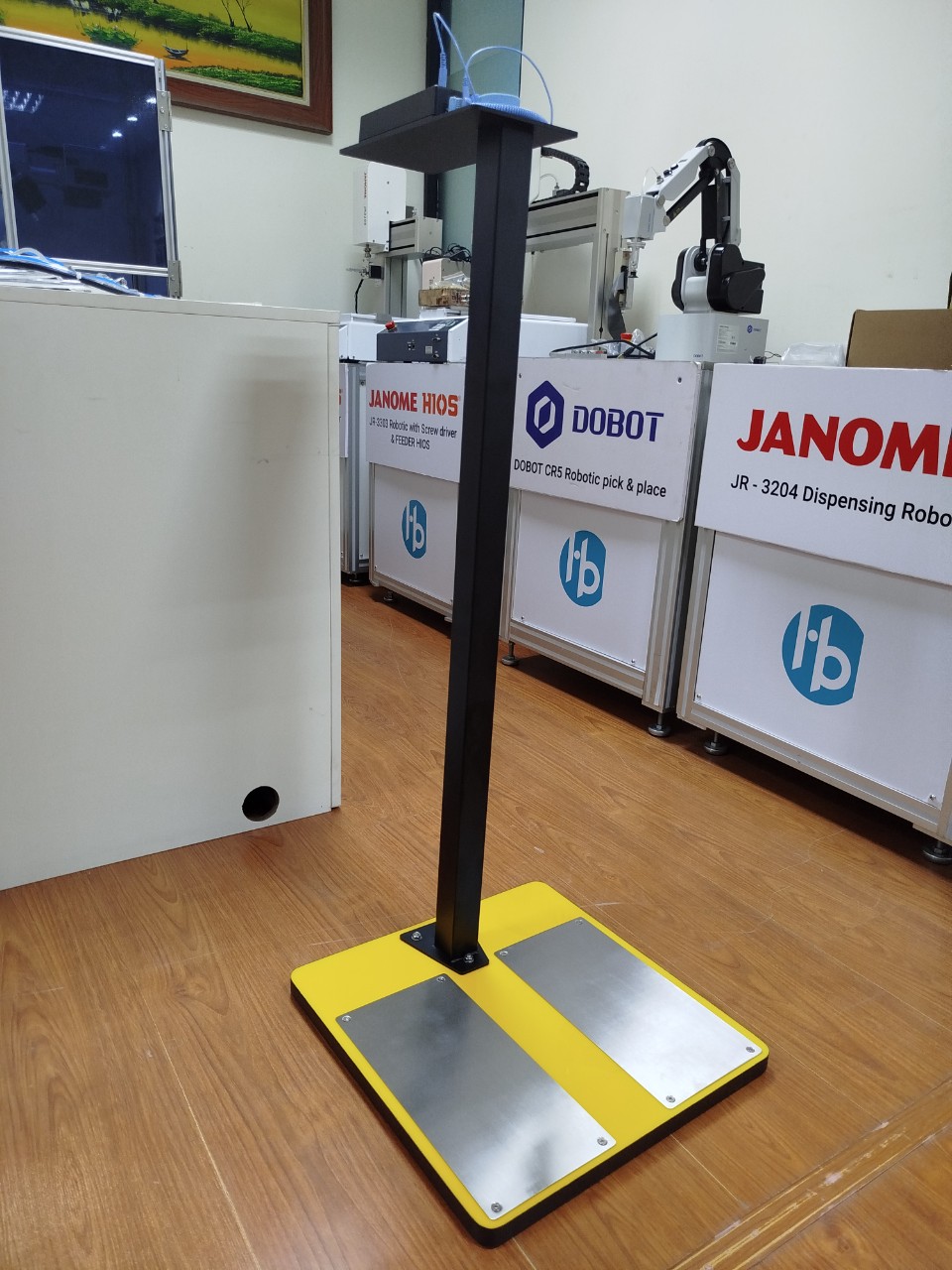

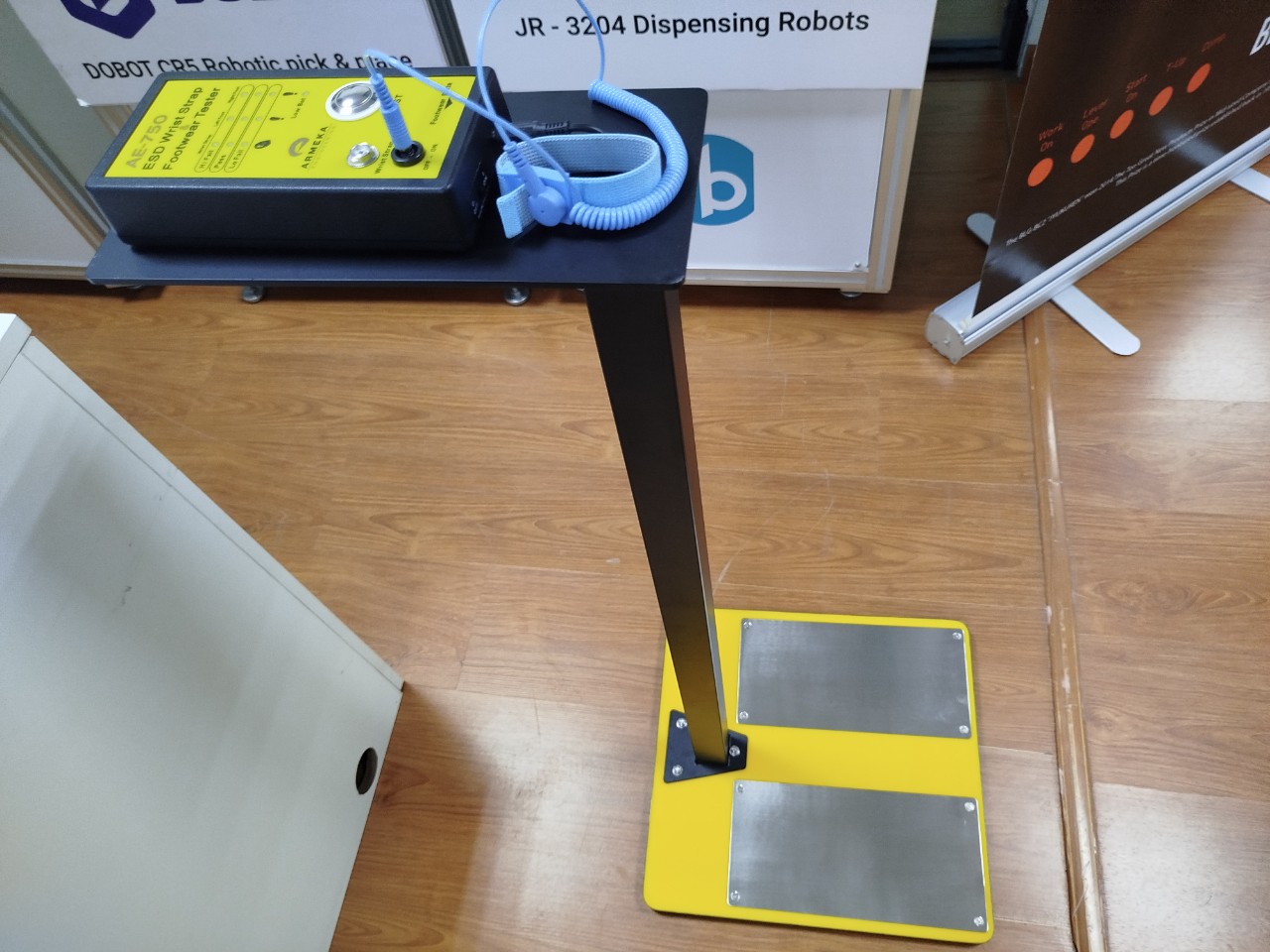

AE 750 FOOTWEAR AND WRIST STRAP TESTER

Technical Data:

• Size of the tester: 170x85x35mm, weight 260g, material: Polystyrene
• Wrist strap connectors: 10mm snap, 4mm banana plug and GSGS
• Connection to the foot test plate: 4mm banana plug
• Operational light: 3 leds for both, wrist strap & footwear
• LOW (red) = test result less than 750kΩ(non-acceptable)
• OK (green) = test result between 750kΩ-10/35MΩ(acceptable)
• HIGH (red) = test result over 10/35MΩ (non-acceptable)
• Foot test plate: Dual plate stand, conductive area 150x350mm, stainless steel
• Test voltage: 24V
• Accuracy: ±5% when temperature +15 to +35
• Battery: Standard 9V Alkaline battery 6LR61
• Bad battery: Operation lights won’t be operating if battery voltage is 4.7V or less.
• Battery life: Over 20,000 testers (alkaline battery, test 10 sec.)
• Default setting: Lower limit ≤750KΩ, upper limit ≥35MΩ
• LOW BAT led blinking is battery voltage is 6V or less
