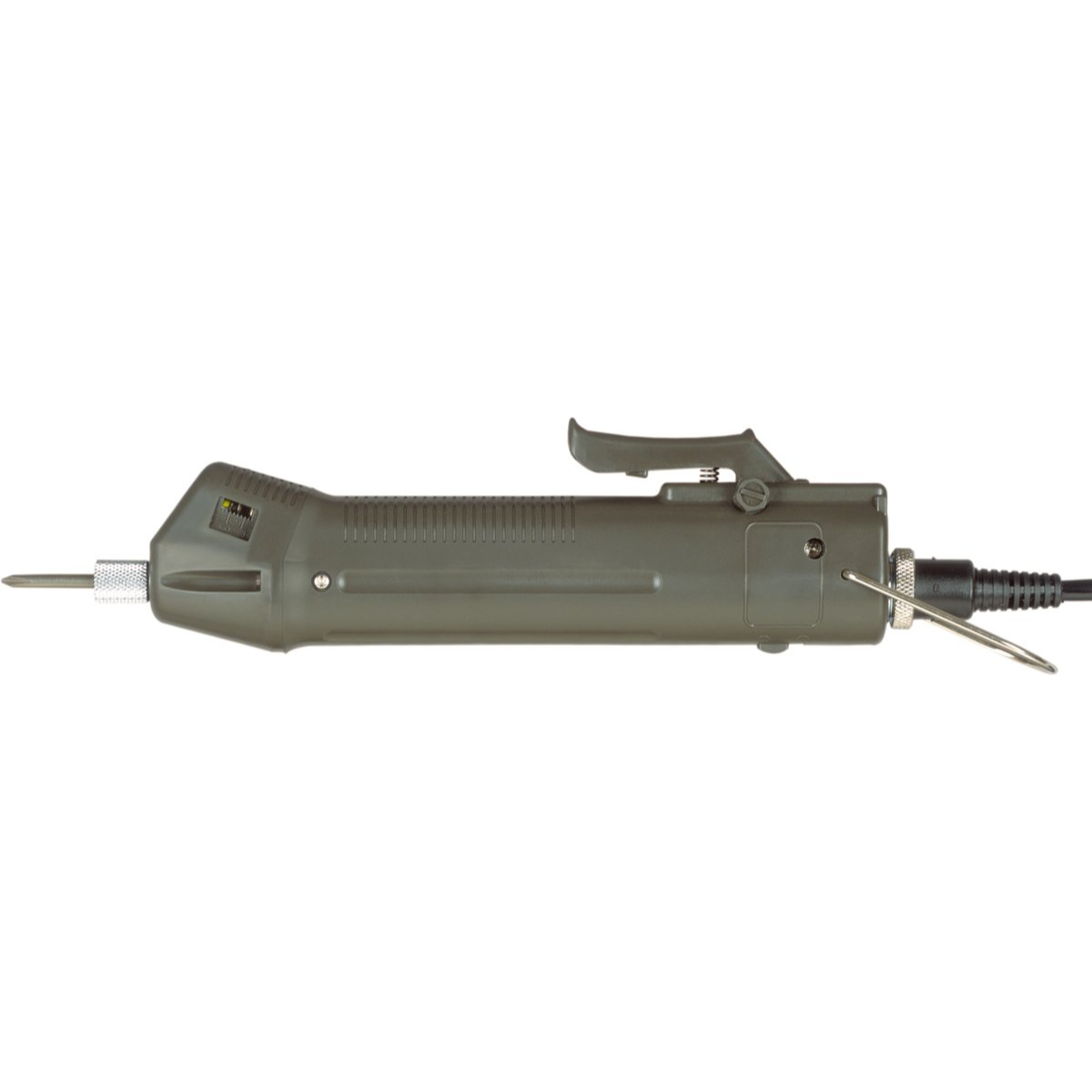

The screwdriver body uses an anti-electrostatic material to prevent the generation of static electricity, which is suitable for the assembly of precision equipment and electronic parts.
[Surface resistance: max. 104Ω ]
Specifications:
Starting method | Two-way(Push/Lever)Start Type | |
Output Torque Range | N.m | 0.2-1.2 |
Ibf・in | 1.7-10 | |
kgf・cm | 2-12 | |
Torque Switching | Stepless Adjustment | |
Unloaded Rotation Speed(r.p.m) | Low | 590 |
High | 900 | |
Screw Size(mm) | Screw size | 2-3 |
Tapping | 2-3 | |
Bit |
Hios shank | H4 |
Hex shank | H5 and 5HEX(both can be used)or1/4HEX | |
Power Supply | Model | BLC-45 BLC-70 |
Accessories |
Bit H4 |
+♯1 (∅4.0×40mm) +♯2 (∅4.0×40mm) |
Bit H5 | +♯1 (∅5.0×60mm) +♯2 (∅5.0×60mm) |
|
1/4HEX |
+♯1 (5.0×50mm) +♯2 (5.0×50mm) - (5.0×50mm) |
|
Cord length(m) | 1.5m(5p) | |
Lshaped hexwrench | Width cross flats:5mm,1pc | |
Torque Range Table | ![]() |
