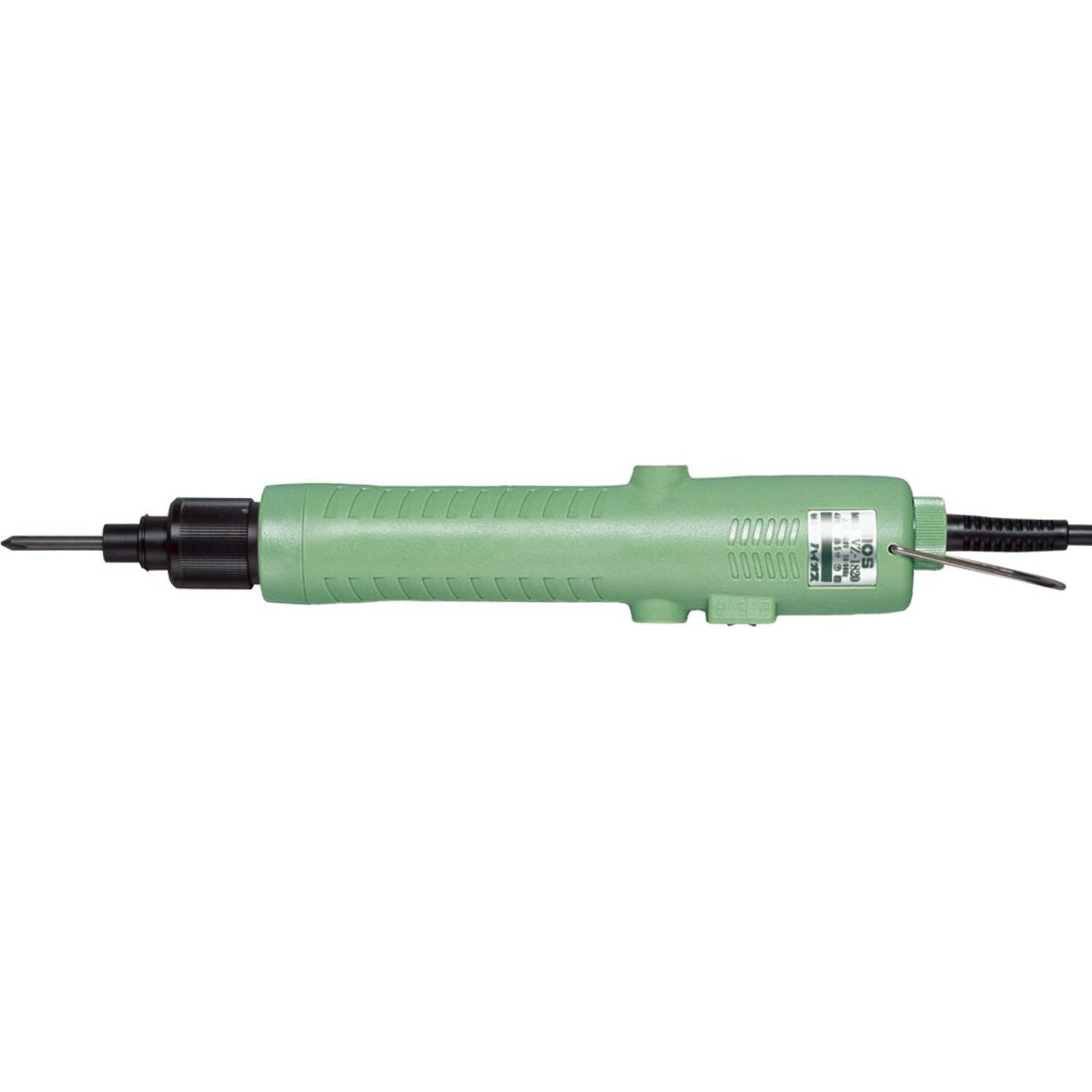

Transformerless screwdrivers suitable for heavy work
Transformerless type with built-in controller.
Can be directly plugged into an AC outlet.
Light and slim balanced body design that minimizes operator fatigue.
HIOS H5 bit and hexagonal bit with width across flats 5mm (5HEX) can be used.
(Not applicable to VZ-1510 ,VZ-1510PS,VZ-4504 and VZ-4504PS)
Specifications:
| Start | Push-to-Start Type | |
| Input/Consumption power | AC220-240V±5％／72W | |
| Output Torque Range | N.m | 1-4.5 |
| Ibf・in | 8.8-39 | |
| kgf・cm | 10-45 | |
| Torque Switching | Stepless Adjustment | |
| Screw Size(mm) | Screw size | 3-5 |
| Tapping | 2.6-4 | |
| Bit |
Hios shank | |
| Hex shank | 1/4HEX | |
| Drivercord length | 3m | |
| Unloaded Rotation Speed(r.p.m) | 400 | |
| External Dimensions(mm) |
Grip | 37.8 |
| Length(mm) | 280 | |
| Weight | 660 | |
| Accessories |
Bit 1/4Hex | +♯1 (5.0×50mm) |
| +♯2 (5.0×50mm) | ||
| - (5.0×50mm) | ||
| Flat 2p conversionplug |
only for 100V | |
| Carbonbrush model number | 1 pair | VZ18-0480B |
| Torque Range Table |   |
Plug type
| Voltage | 100V | 120V | 220-240V |
| Plug type | Type A | Type A-2 | Type C |
 |
 |
 |
