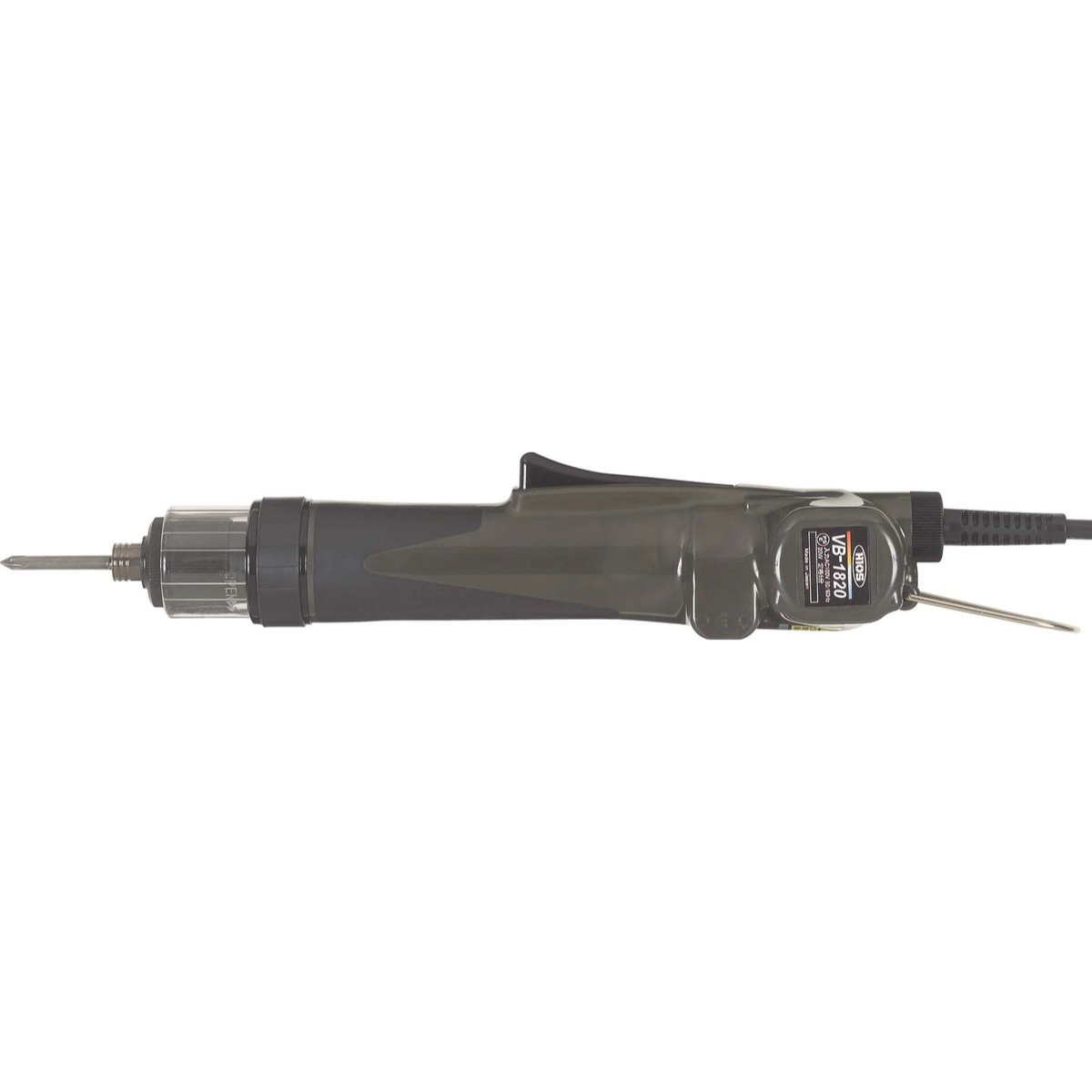

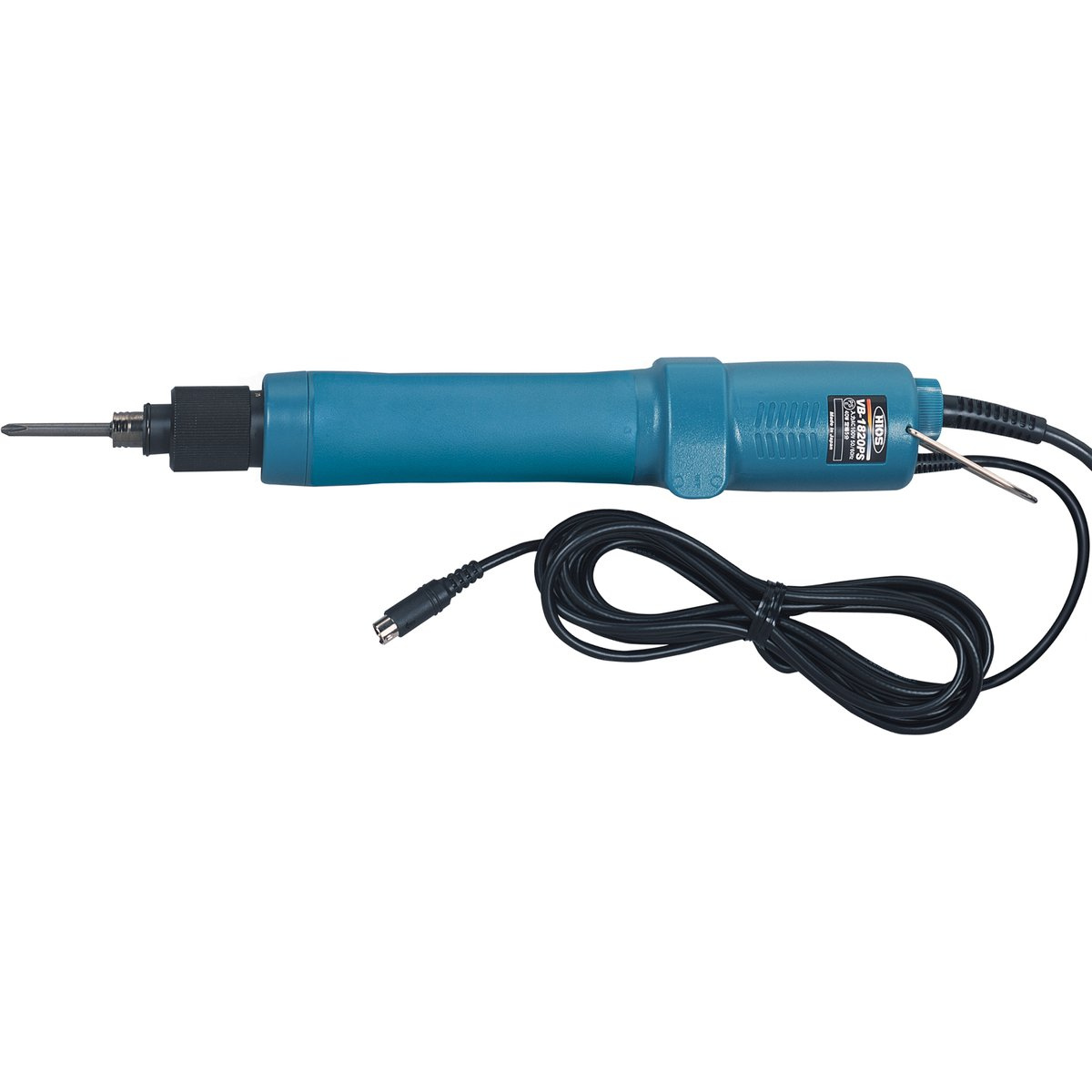

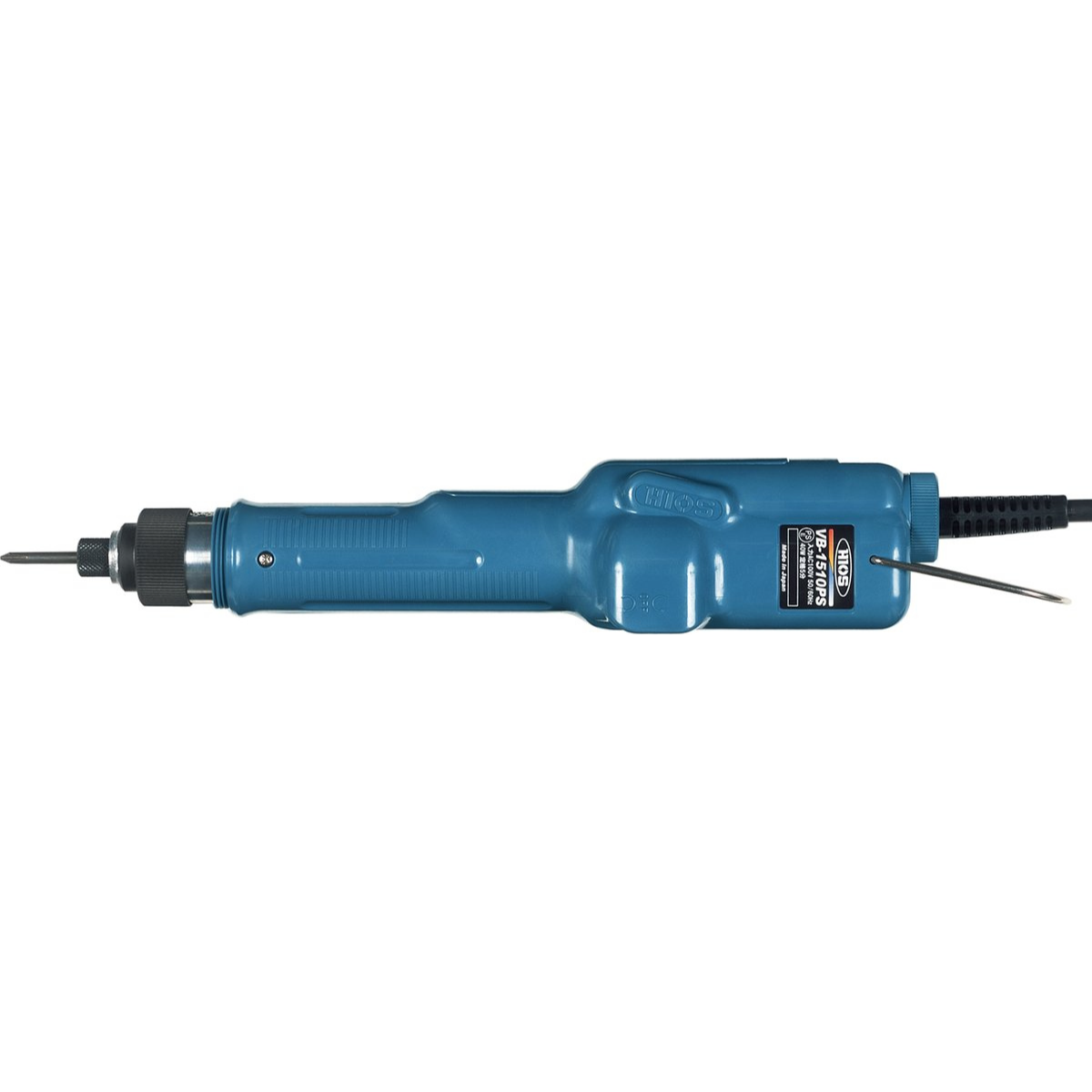

These screwdrivers prevent you from skipping screw tightening in combination with the screw counter.
They have a function to output positive rotation, reverse rotation and torque-up (tightening complete) signals.
Specifications:
| Start | Lever Start Type | |
| Input/Consumption power |
AC100V±5％／40W | |
| AC120V±5％／40W | ||
| Output Torque Range | N.m | 4-1.8 |
| Ibf・in | 3.5-16 | |
| kgf・cm | 4-18 | |
| Torque Switching | Stepless Adjustment | |
| Screw Size(mm) | Screw size | 2.6-4 |
| Tapping | 2.6-3 | |
| Bit |
Hios shank | H5 and 5HEX(both can be used)or1/4HEX |
| Hex shank | 1/4HEX | |
| Drivercord length | 3m | |
| Unloaded Rotation Speed(r.p.m) | 2000 | |
| External Dimensions(mm) |
Grip | 33 |
| Length(mm) | 255 | |
| Weight | 750 | |
Accessories |
Bit H4 |
- |
| Bit H5 |
+♯1 (∅5.0×60mm) | |
| +♯2 (∅5.0×60mm) | ||
| Bit 1/4Hex | +♯1 (5.0×50mm) | |
| +♯2 (5.0×50mm) | ||
| - (5.0×50mm) | ||
| Plus screw | M2.6 (Pan hed machine screw) | |
| Flat 2p conversionplug | 1pc (With ground wire) | |
| Spring | - | |
| Torque Range Table |  |
|
Plug type
| Voltage | 100V | 120V | 220-240V |
| Plug type | Type A | Type A-2 | Type C |
 |
 |
 |
