Energy saving and cost reduction can be achieved by reducing power consumption by about 50% (compared with conventional HIOS product).
The temperature rise of the motor is reduced by about 30% and reduces errors caused by heating.
Can be directly plugged into AC outlet.
Specifications:
| Start | Push-to-Start Type | |
| Input/Consumption power |
AC100V±5％／40W AC120V±5％／40W AC220-240V±5％／32W |
|
| Output Torque Range | N.m | 0.5-3 |
| Ibf・in | 4.3-26 | |
| kgf・cm | 5-30 | |
| Torque Switching | Stepless Adjustment | |
| Screw Size(mm) | Screw size | 3-5 |
| Tapping | 3-4 | |
| Bit |
Hios shank | H5 and 5HEX(both can be used) |
| Hex shank | 1/4HEX | |
| Drivercord length | 3m | |
| Unloaded Rotation Speed(r.p.m) | 1200 | |
| External Dimensions(mm) |
Grip | Min 39 Max 41 |
| Length(mm) | 286 | |
| Weight | 750 | |
Accessories |
Bit H4 |
- |
| Bit H5 |
+♯1 (∅5.0×60mm) | |
| +♯2 (∅5.0×60mm) | ||
| Bit 1/4Hex | +♯1 (5.0×50mm) | |
| +♯2 (5.0×50mm) | ||
| - (5.0×50mm) | ||
| Plus screw | M2.6(Pan hed machine screw) | |
| Flat 2p conversionplug | 1pc (With ground wire) | |
| Spring | - | |
| Torque Range Table |  |
|
Plug type
| Voltage | 100V | 120V | 220-240V |
| Plug type | Type A | Type A-2 | Type C |
 |
 |
 |

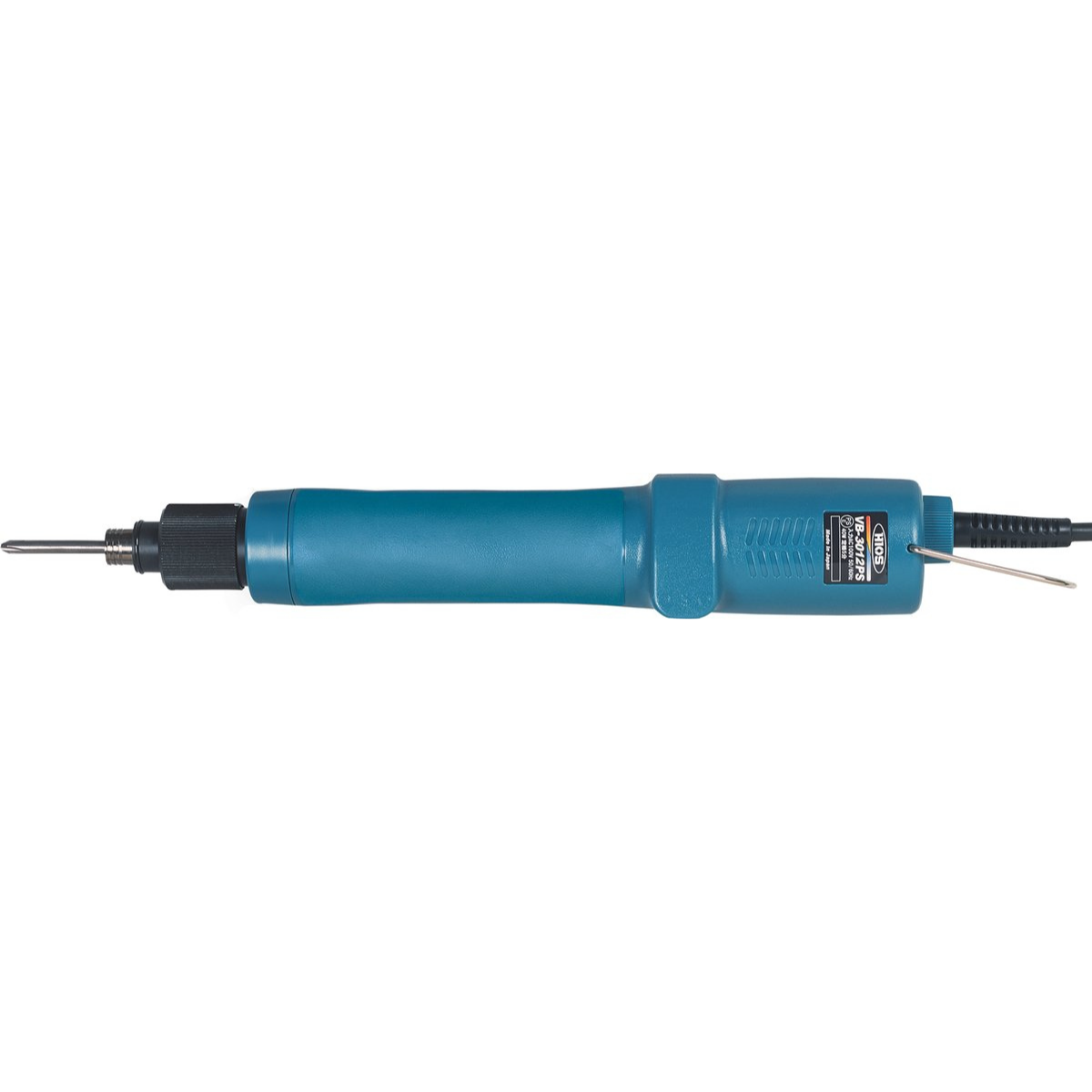

Reviews Brushless Screwdriver VB-3012PS
