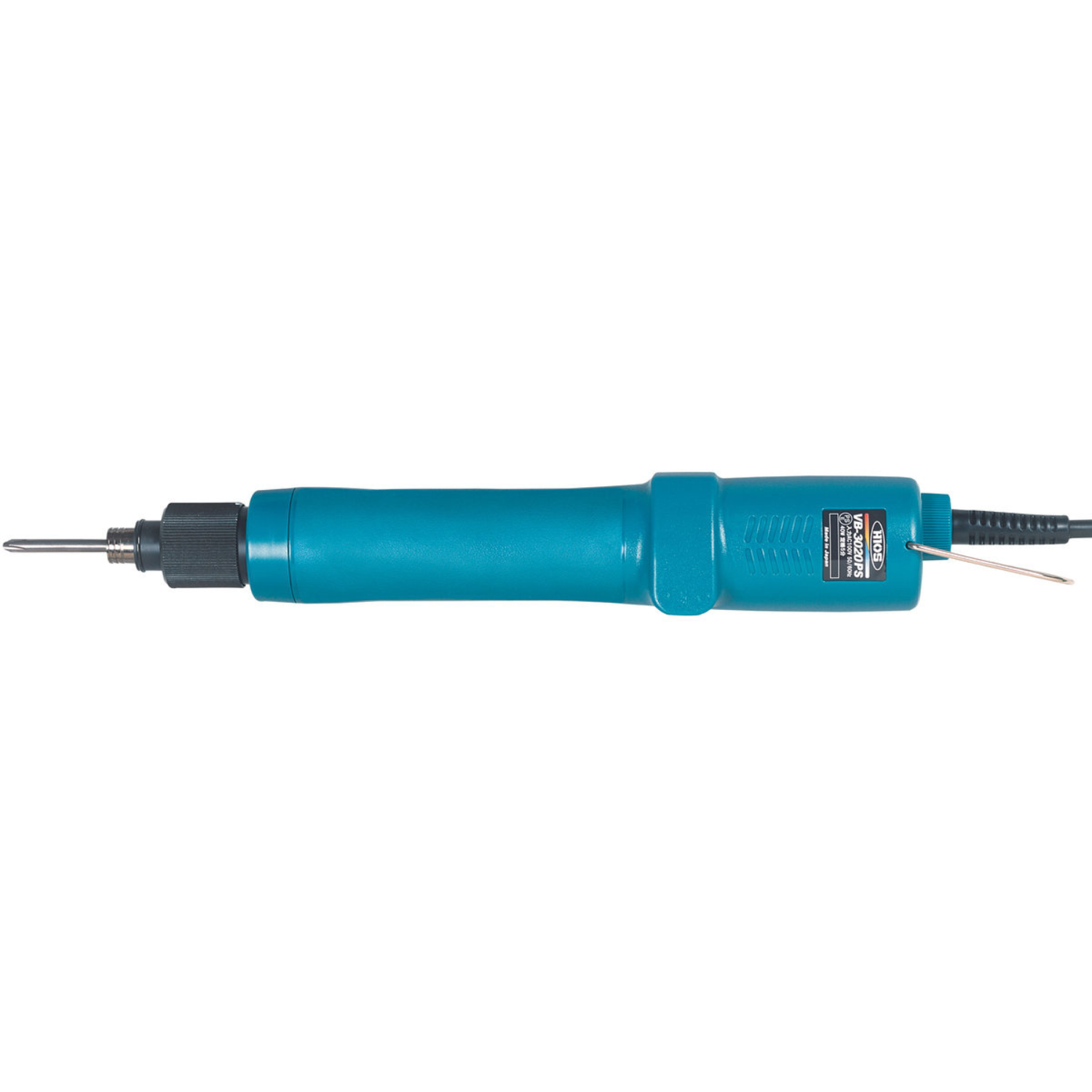

Brushless Screwdriver VB-3020PS-OPC (For use with HIOS Screw Counter)

Product Code :
Brand: HIOS
Availability: Đặt trước
Contact

These screwdrivers prevent you from skipping screw tightening in combination with the screw counter.
They have a function to output positive rotation, reverse rotation and torque-up (tightening complete) signals.

Specifications:

Start   Push-to-Start Type
Input/Consumption power   AC100V±5%/40W
Output Torque Range N.m 1-3
Ibf・in 8.7-26
kgf・cm 10-30
Torque Switching   Stepless Adjustment
Screw Size(mm) Screw size 3-5
Tapping 3-4
Bit

Hios shank H5 and 5HEX(both can be used)or1/4HEX
Hex shank 1/4HEX
Drivercord length   3m
Unloaded Rotation Speed(r.p.m)   2000
External Dimensions(mm)

Grip Min 39             Max 41
Length(mm) 286
Weight   750


Accessories





Bit H4 -
Bit H5

+♯1 (∅5.0×60mm)
+♯2 (∅5.0×60mm)
Bit 1/4Hex +♯1 (5.0×50mm)
+♯2 (5.0×50mm)
- (5.0×50mm)
Plus screw M2.6(Pan hed machine screw)
Flat 2p conversionplug 1pc (With ground wire)
Spring -
Torque Range Table



Plug type

Voltage 100V 120V 220-240V
Plug type Type A Type A-2 Type C
