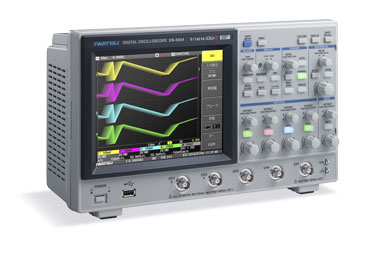

Máy hiện sóng Kỹ Thuật Số Dòng DS-5600

DS-5654

DS-5652

DS-5634

DS-5632

DS-5624

DS-5622

DS-5614

DS-5612

Băng thông tần số(-3dB)

500MHz

350MHz

200MHz

100MHz

Thời gian tăng (điển hình)）

750ps

1ns

1.75ns

3.5ns

Kênh đầu vào

4

2

4

2

4

2

4

2

Tốc độ lấy mẫu tối đa

2GS/s (khi 2 kênh xen kẽ), 1GS/s (khi tất cả các kênh được sử dụng)

Tốc độ lấy mẫu tương đương

100GS/s

Độ phân giải phát hiện đỉnh

1ns

Bình quân

2 đến 65536 lần (số mũ của 2 bước)

Maximum Memory Length

5M points (when 2 channels interleaved), 2.5M points (when all channels are in use)

Vertical Resolution

8-bit (When high-resolution calculation is valid: Maximum 12-bits)

Input voltage range

2mV/div - 10V/div(1MΩ), 2mV/div - 2V/div(50MΩ)

2mV/div - 10V/div(1MΩ)

Offset voltage

2mV/div - 50mV/div : ±1V
50.2mV/div - 500mV/div : ±10V
502mV/div - 10V/div : ±100V

DC gain accuracy

±1.5% + (0.5% of fullscale)

Maximum Input Voltage

±400Vpeak CAT I (1MΩ), 5Vrms (50Ω)

±400Vpeak CAT I (1MΩ)

Band-limiting filter

Analog form : 100MHz,20MHz,2MHz,200kHz

Analog form : 20MHz,2MHz,200kHz

Digital Form: Select either LPF, HPF or SMA, 4 independent channels

Input coupling

GND, DC 1MΩ, AC 1MΩ,DC50Ω

GND, DC 1MΩ, AC 1MΩ

Input Impedance

1MΩ±1% //16pF、 50Ω±1%

1MΩ±1% //20pF

Probe sense

Automatic： 1：1、10：1、100：1、1000：1
Manual： 1：1、5：1、10：1、20：1、50：1、100：1、200：1、500：1、1000：1、2000：1

Timebase

500ps/div ～ 50s/div

1ns/div ～ 50s/div

2ns/div ～ 50s/div

5ns/div ～ 50s/div

Standard probe

SS-101R (multi-channel supplied as standard)

SS-0130R (multi-channel supplied as standard)

Roll mode

50ms/div ～ 50s/div (100kS/s max)

Timebase (Clock) accuracy

±10 ppm

Trigger function

Trigger type

Edge, Edge ALT, Edge OR, Pulse Count, Pulse Width, Cycle, Dropout, TV,
Pattern (OR, NOR, AND, NAND), Serial (UART, SPI, I2C)

TV mode /
Line number /
Field sequence

NTSC, PAL, Custom / Up to 3,000 / 1, 2, 4, 8

Pulse Count Trigger

1 to 9999 events

Pulse Width Trigger

15ns to 50s

Period Trigger

40ns to 50s

Dropout Trigger

50ns to 50s

Pattern Trigger

 OR、NOR、AND、NAND

Trigger source /
State /
threshhold level setting

All Channels / HIGH, LOW, Don't Care / All Channel Independent Setting

Serial Trigger

UART

Trigger Selection

START, STOP, Parity Error, Data Pattern

Bit Rate

1,000bps to 1Mbps (set in units of 100bps)

Comparative Data Length

5 to 8 bits

Signal Source

CH1 to CH4, EXT (CH1, CH2, EXT for 2 channel function)

SPI

* CH1 input is reserved for SCK signal
input: Maximum 20MHz

Trigger Selection

Data Pattern

CS Selection

Idling time specified when no positive logic/negative logic or CS

Comparative Data Length

4 to 64 bits

Signal Source

CH1 to CH4, EXT (CH1, CH2, EXT for 2 channel function)

I2C

Trigger Selection

START, STOP, RESTART, NACK, Data Pattern

Address Mode

Selected from 7-bit / 10-bit / EEPROM read

Comparative Data Length

1 to 5bytes when the address is 7-bit/10-bit, 1byte when EEPROM read (with shift comparison)

Signal Source

CH1 to CH4, EXT (CH1, CH2, EXT for 2 channel function)

Trigger Source

All channels, EXT (±0.5V), EXT10 (±5.0V), Line

Trigger Slope /Coupling

+, - / AC, DC, High Frequency Rejection, Low Frequency Rejection, Noise Rejection

Display function

Display size/ resolution

7.5inch color TFT-LCD with Touch screen / VGA(640*480pixels)

Display mode

YT、XY、XY (Triggered)

Vector Display Method

Sample Point Interpolation Display, Dot Display
