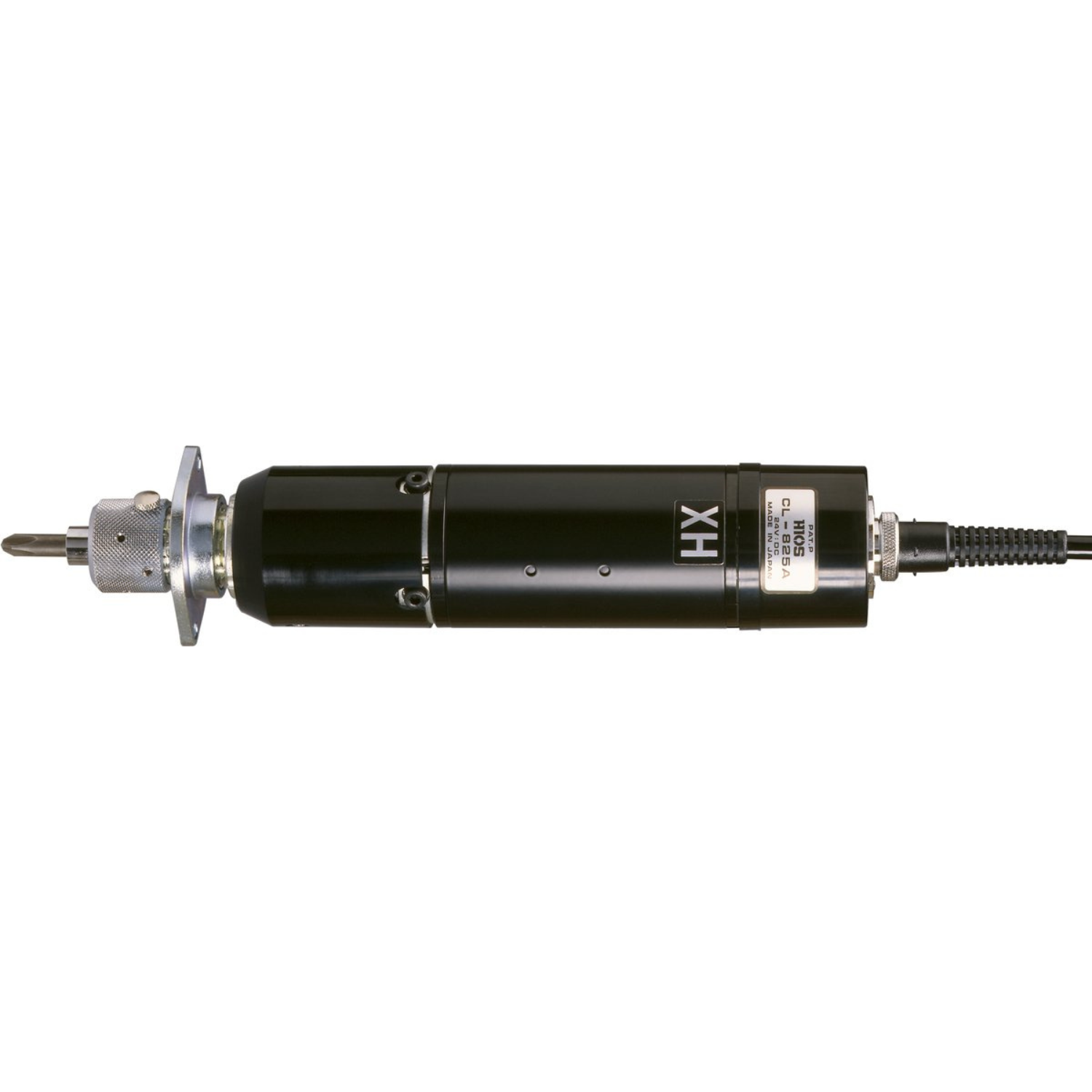

Electric Screwdriver CL-825A (CL-825A, CL-825A-OW, CL-825A-O, CL-825A-R)

Product Code : EL9609
Brand: HIOS
Availability: Đặt trước
Contact

Most suitable for automation assembly Machines because it can be installed into the XY robot

Stable torque accuracy helps uniform screw tightening for automation.
Easy to install to the existing system.

If you order variations other than the suction type (e.g., R/OL/OW), please contact us.

Variation:

CL-825A-OW: one way clutch

CL-825A-R: left-hand screw

CL-825A-O: Oil seal



Specifications:

Output Torque Range N.m 2-4
Ibf・in 17-35
kgf・cm 20-40
Torque Switching   Stepless Adjustment
Unloaded Rotation Speed(r.p.m) Low 310
High 570
Screw Size(mm) Screw size 4-5
Tapping 4-5
Power Supply Model CLT-AY-81
External Dimensions(mm) Grip 50
  Length(mm) 251
Weight(g)   1270
Spring color   Yellow
Accessories Cord length(m) 3m(4P5p)
Carbonbrush model number 1pair CL816-0421

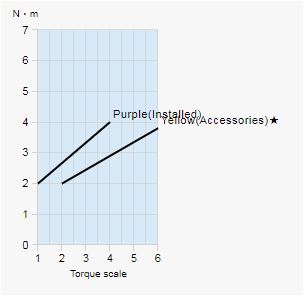

Torque Range Table
