Specifications:

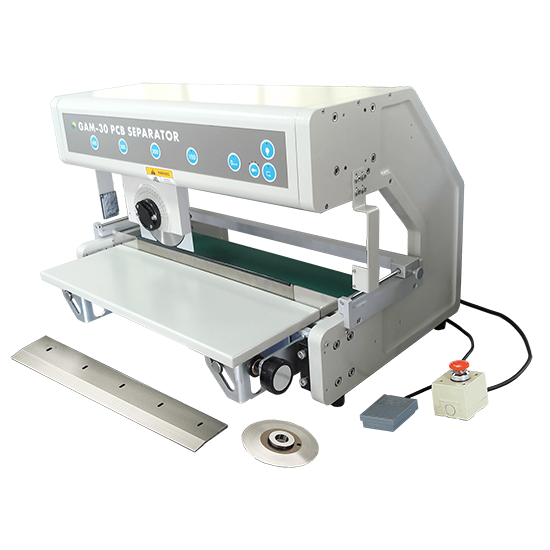

| NO | GAM 30 V-Cut PCB Separator |
|---|---|
| Blade cutting speed | 150, 250, 350, 500 mm/sec |
| Blade cutting distance | 100, 200, 300, 400 mm |
 |
|
| A: PCB thickness | 1.0~3.2 mm |
| B: Minimum size of V-groove | 0.25 mm |
| C: Remaining bridge thickness | 0.3~0.8 mm |
| Maximum PCB size | 400×150 mm |
| Micro-adjust for blade pressure | 0~2 mm |
| PCB height | 10~40 mm |
| Backstop depth adjustment range | 0~150 mm |
| PCB front support adjustment range | 0~40 mm |
| PCB table adjustment range | 0~50 mm |
| Power supply | 110V / 220V±10% 1Φ |
| Rated power | 250W |
| Dimension | 710 X 560 X 480 mm |
| Weight | 65kg |
| Blade material | Alloy Steel |
Change without notice.
Welcome customized request.
