Convenient automatic screw presenter for a wide range of screw types and sizes;
both robot-mounted and handheld screwdriver compatible models available.
We offer different models for handheld screwdrivers and robot-mounted screwdrivers; screw sizes M1.0～M5.0.
Manual Model Robot Model
Just replace the rail to change to a different screw size
・JSP-RSD / JSP-MS Series Compatible with 8 different sizes (M1.0～M3.0).
・JSP-R / JSP-M Series Compatible with 3～4 different sizes (M2.0～M3.0 / M3.5～M5.0).
Usable with a wide range of ferrous, non-ferrous and other screw types.
Horizontal method for smooth and steady screw presentation.
If there are too many screws in the scooping chamber and the screws stop coming, the motor runs in reverse for a short time to let the presenter correct itself.
If the presenter does not return to normal, the safety function cuts off the motor power.
All models come with an external output signal line as a standard accessory.

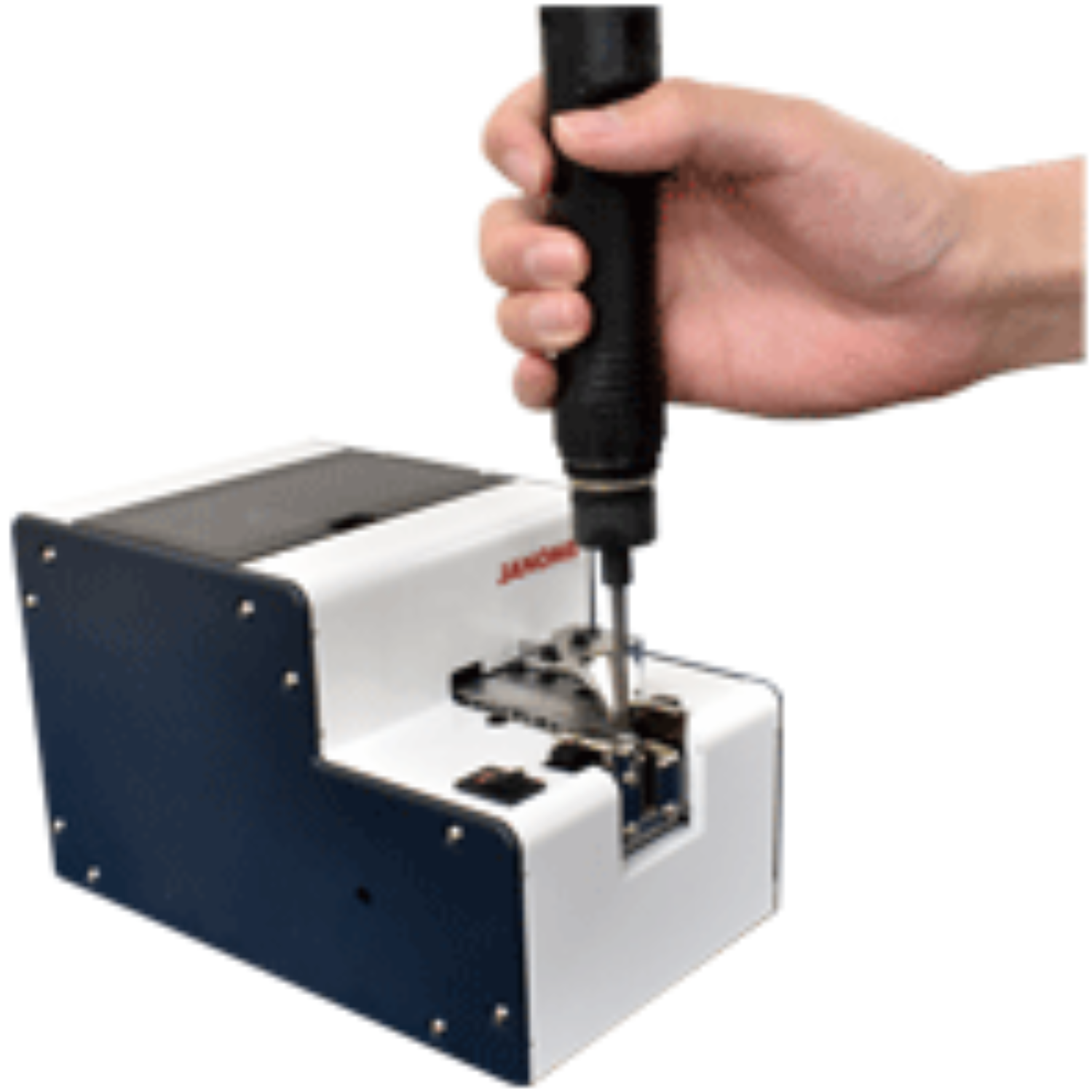

・Manual Outputs a signal when a screw is picked up.
・Robot Outputs a signal for screw presence/absence.
We offer mounting plates of various types, directions and heights for installation on our desktop robots.
Compact size ideal for mounting even on a small desktop robot with a narrow footprint.

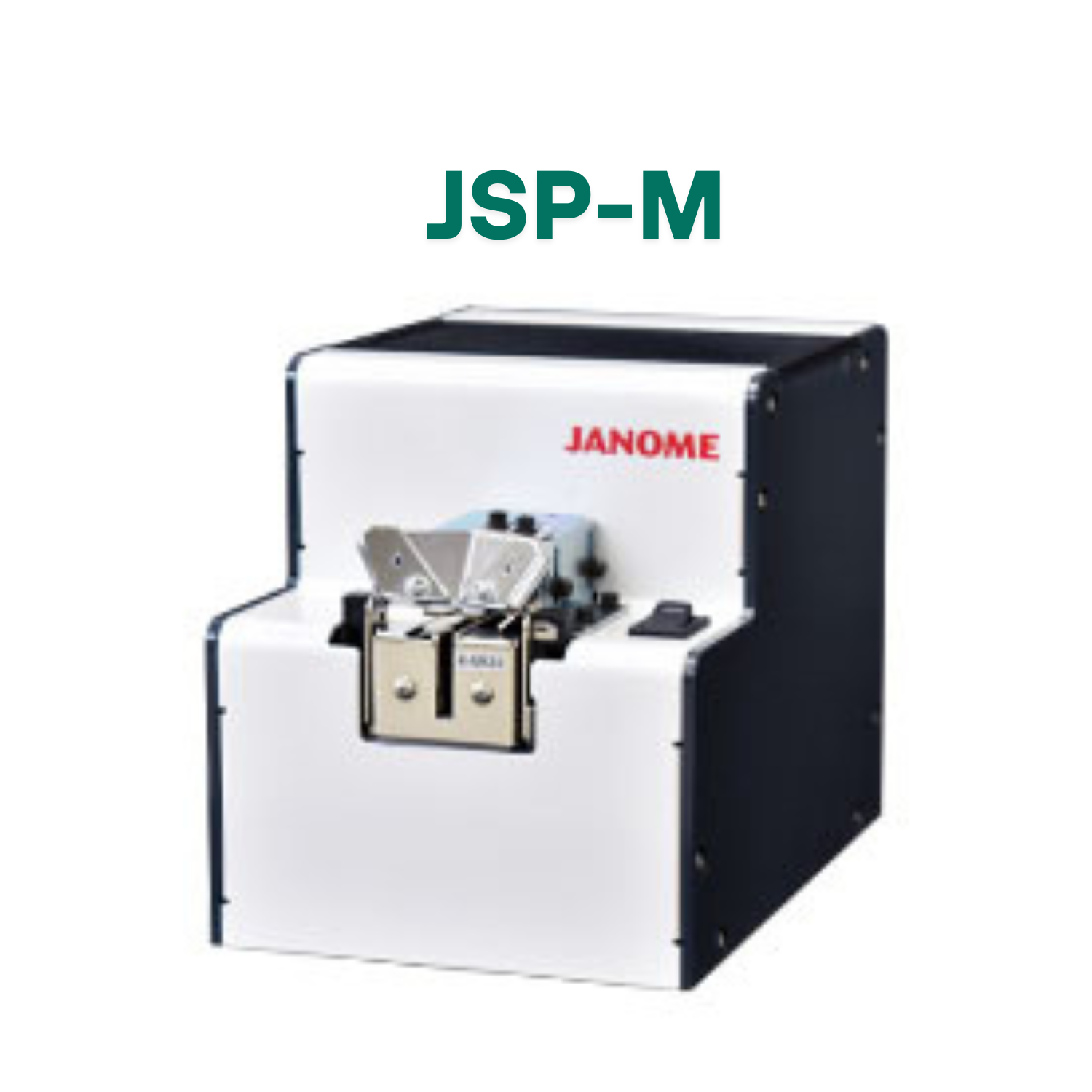

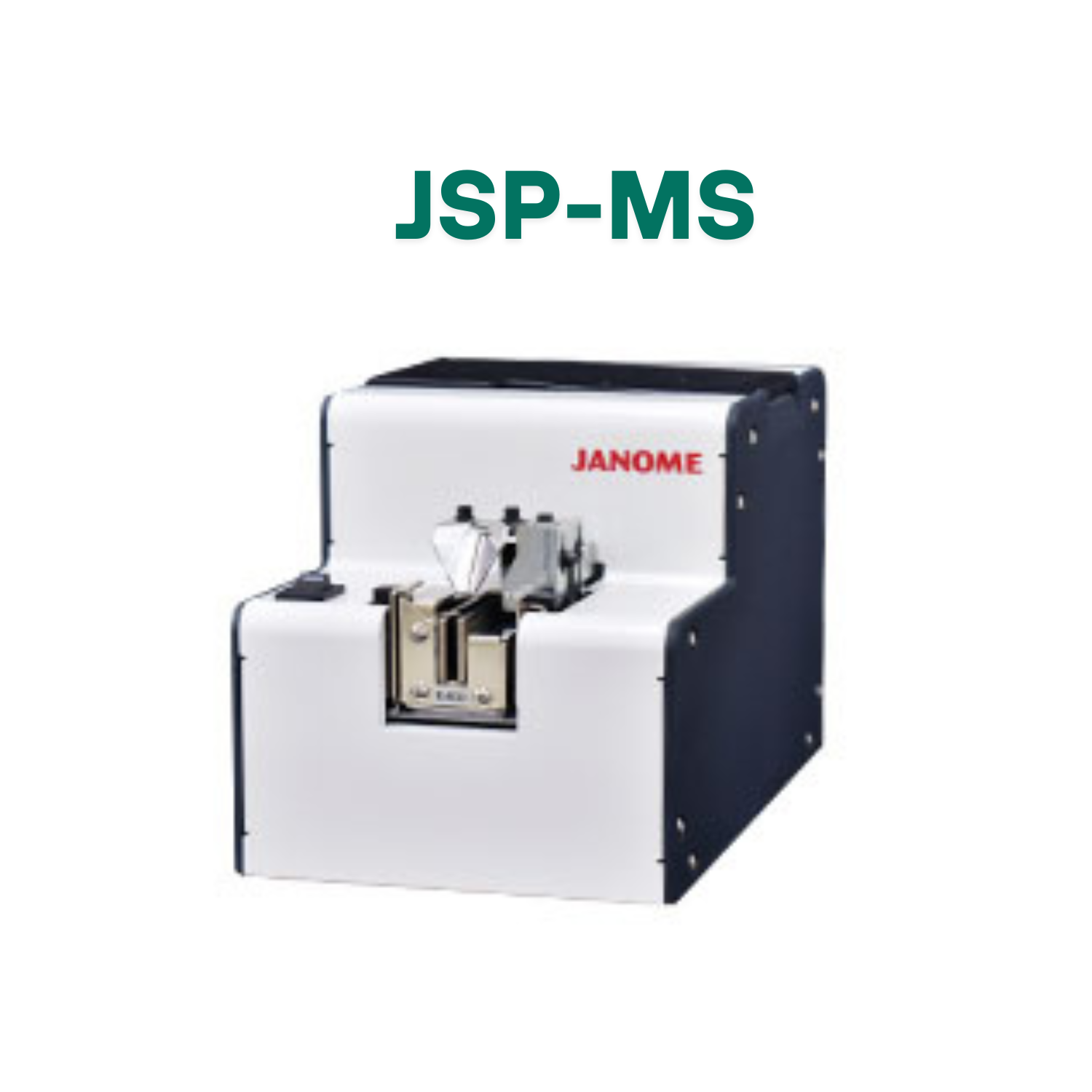

JSP-MS Series JSP-M Series
Compatible Screw Size：M1.0～M3.0 Compatible Screw Size：M2.0～M5.0

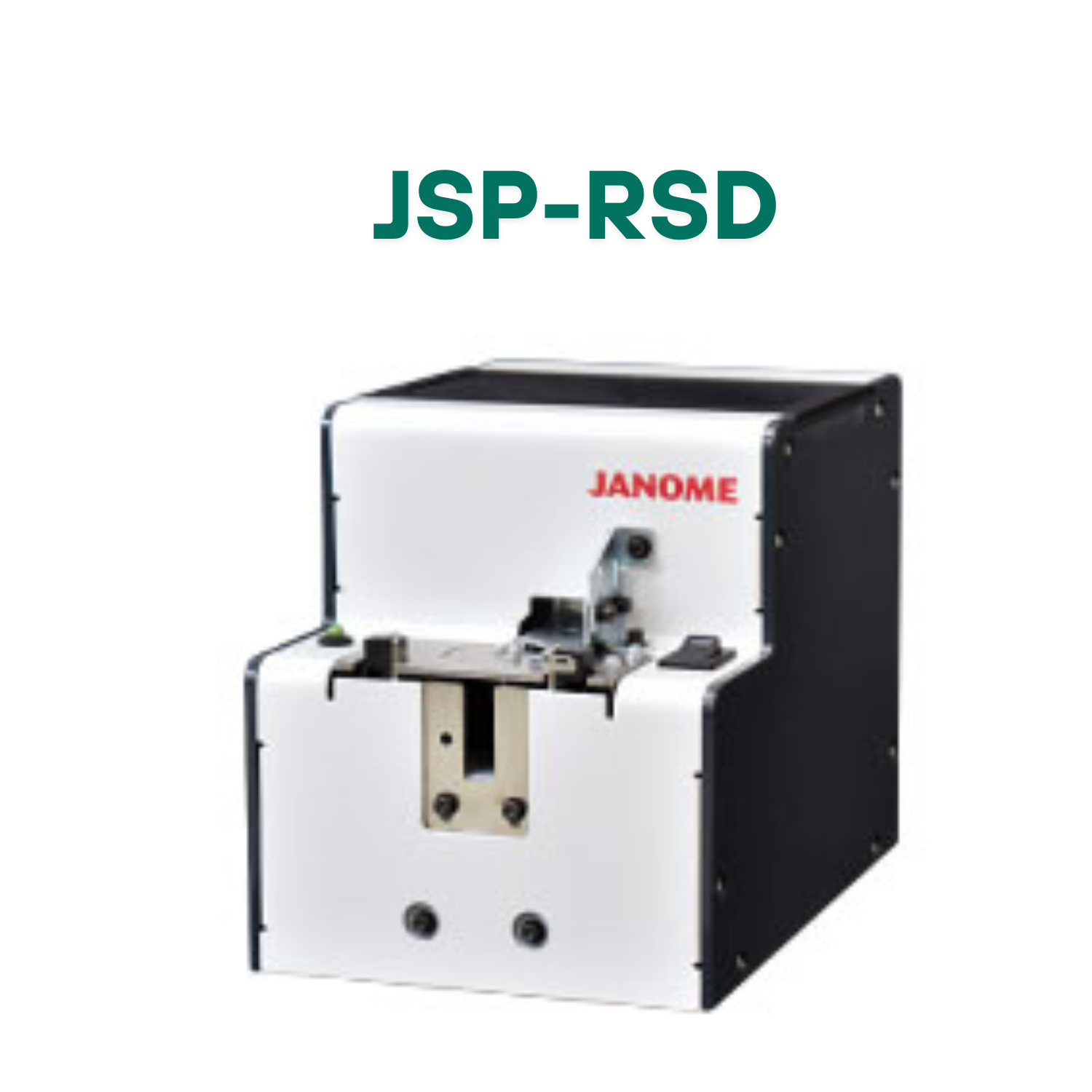

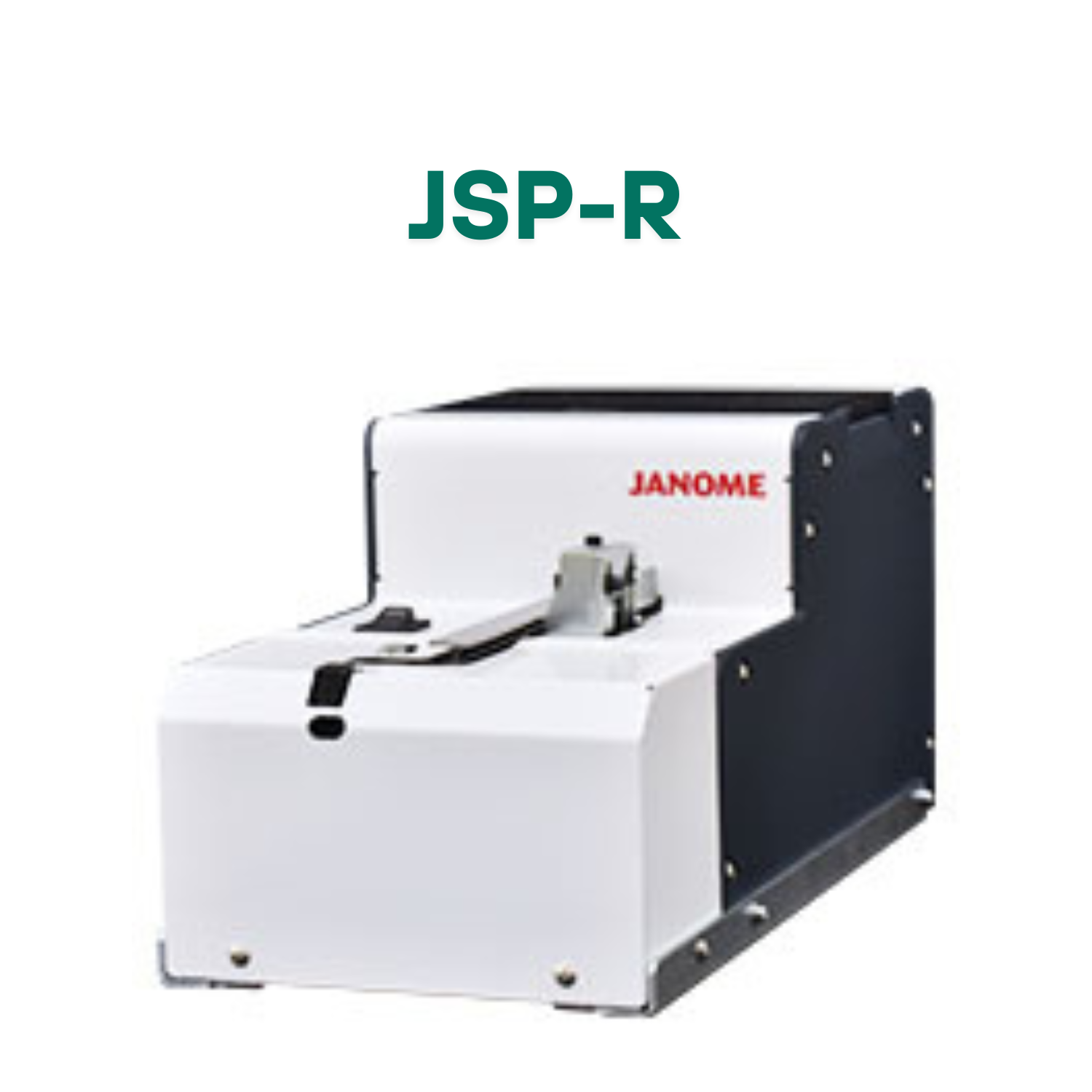

JSP-RSD Series JSP-R Series
Compatible Screw Size：M1.0～M3.0 Compatible Screw Size：M2.0～M5.0
| Application | Manual | Robot | |||
|---|---|---|---|---|---|
| Series Name | JSP-MS Series | JSP-M Series | JSP-RSD Series | JSP-R Series | |
| Compatible Screw Size | M1.0～M3.0 | M2.0～M5.0 | M1.0～M3.0 | M2.0～M5.0 | |
| Maximum Screw Shaft Length | 20mm | 18mm | 20mm | 18mm | |
| Screw Supply Volume | 80cc | 150cc | 80cc | 150cc | |
| Cycle Time | - | - | 0.9sec | 1.5sec | |
| External Dimensions (W×D×H) |
123×181×145.9mm | 129.4×215×138.5mm | 123×181×145.9mm | 133.4×274×138.5mm | |
| Weight (with rail) | 2.9kg | 3.7kg | 3.0kg | 4.4kg | |
| Power Supply | Input | AC100～240V (single phase) 50/60Hz | |||
| Output | DC15V 2.4A AC adapter | ||||
| Operating Environment | Temperature | 0～40℃ | |||
| Humidity | 10～90％ | ||||
