Now that laser soldering has been established as one of the post-processing methods, the new laser soldering unit has been developed to achieve a higher level of process control than simple soldering. In particular, traceability and temperature measurement and control functions have been improved.
In addition to conventional laser soldering control elements (power, time, etc.), the Thermo Pro™ temperature control function enables temperature management and control during soldering. In addition, when used in conjunction with the Soldering Manager Pro soldering management software, it is possible to monitor each soldering condition in real time and store the data on a PC. A video storage function using a coaxial camera can also be installed, allowing improved production control even from a distance.

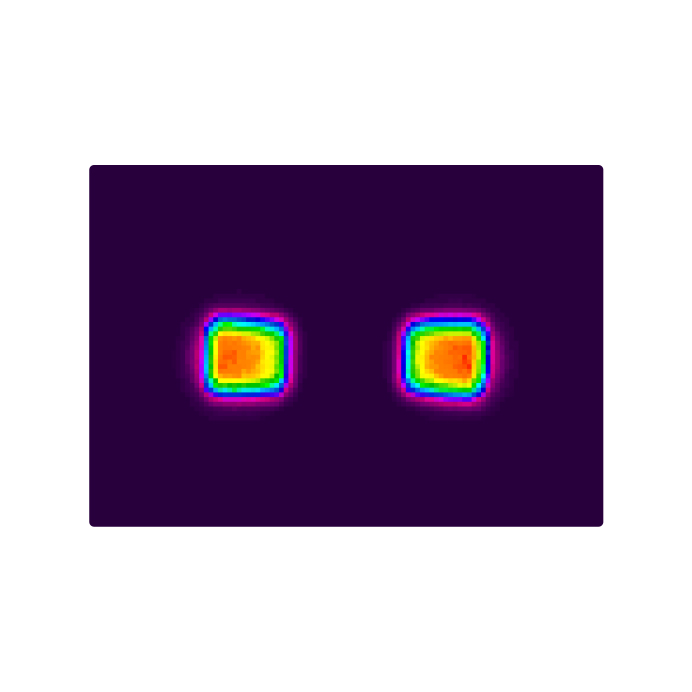

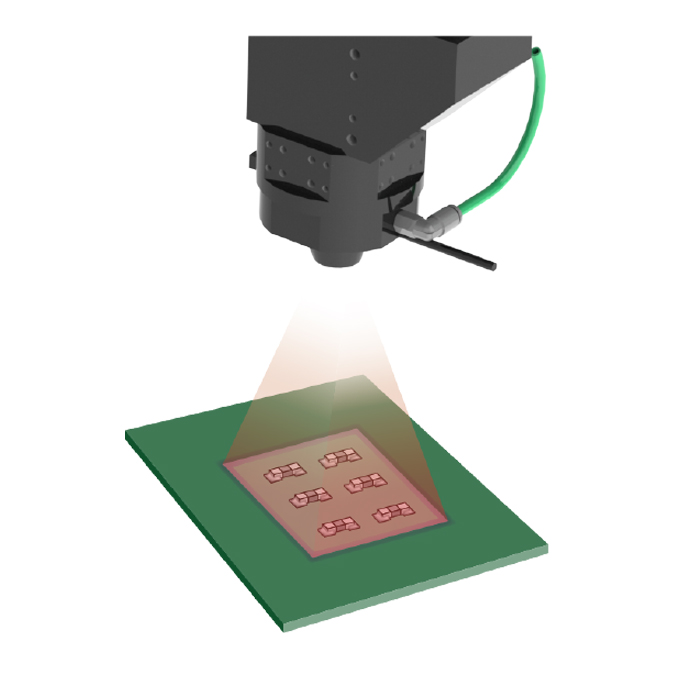

Optimized laser shape for highly efficient heat delivery. Supports not only perfect circles, but also ellipses, squares, rings, and other irregular shapes. Multi-φ function changes the laser spot size without changing the Z-axis (working distance). Optimization of laser geometry is possible even with different pad sizes. Area Laser is not limited to conventional post-process soldering, but also supports SMT as a local reflow process, and is compatible with Thermo Pro™ and Soldering Manager Pro, allowing visualization of the reflow process.
Data link communication allows external editing of conditions. Enables consistent interface design and easy condition editing even in highly integrated facilities.
The ULD-02 controller also controls the resin solder. One controller can control laser and solder together for easier operation.
