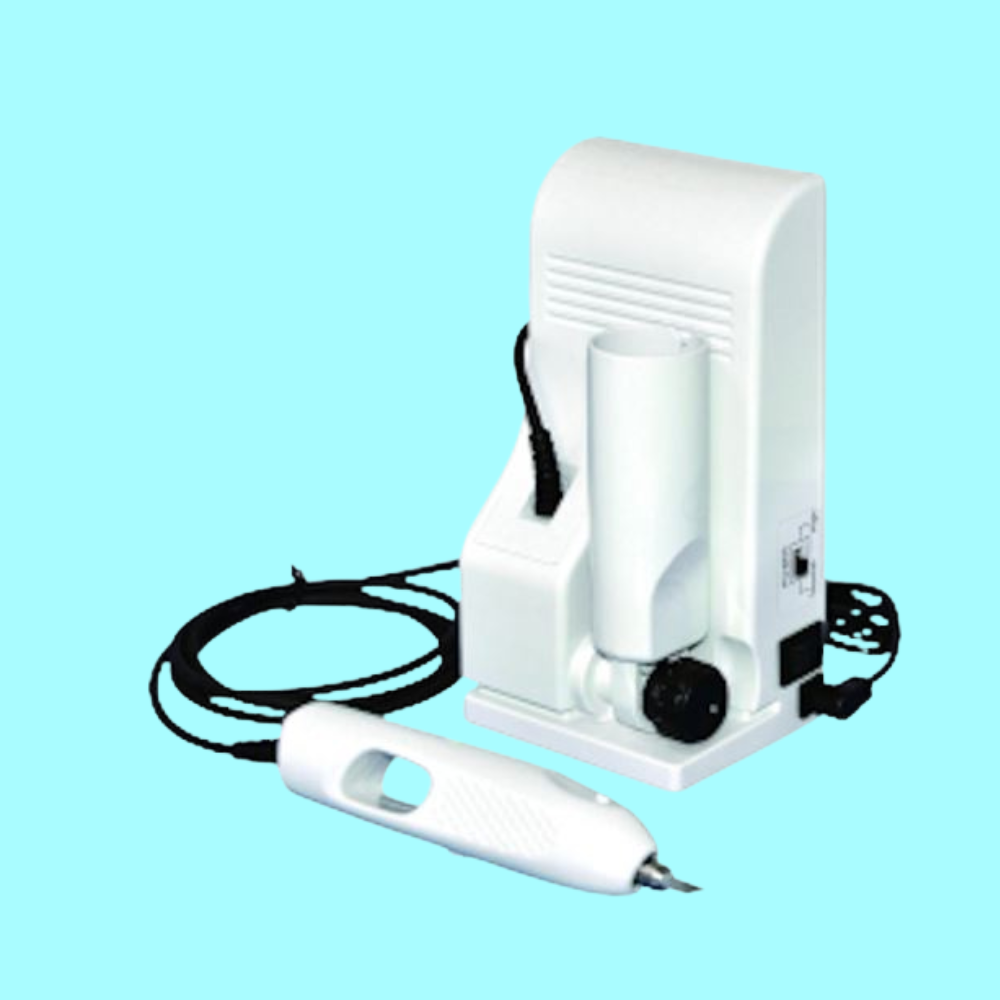

Ultrasonic cutter ZO-91/CE product

Name: Ultrasonic cutter ZO-91/CE product
Brand: HONDA ELECTRONICS
SKU: UL6268
Availability: InStock
Rating: 5 (1 reviews)

Product Code : UL6268

Brand: HONDA ELECTRONICS

Availability: 2-3 Ngày

Contact

INQUIRE NOW

Description
Reviews (0)

CUT PLASTIC LIKE BUTTER!!

***Ultrasonic cutter is a tool, helps you cutting tough materials that needs power to cut.***

The blade of Ultrasonic cutter is vibrated in ultrasonic frequency by internal ceramics transducer.
40,000 cycle per second (40 kHz) assists your smooth cut.

Usage examples (reference)

-Synthetic resin, Plastic, Epoxy putty, Paper/cardboard, Chemical fiber/cloth, polyester putty, Object made by 3D printer, Silicone etc.
-Thickness: 3 mm maximum
-Plastic scale models, military models, railway models, mini4WD, figure, dioramas, dollhouse, gourd hole drilling, cartonnage, cardboard craft, deburring in garage kit production, printed circuit board pattern modification, white metal and wood cutting in sailing ship model making.

Features

-Just one click operation.

(No more holding down the hand-piece switch.)

-Normal mode and High mode can be switched by the output mode switch.

-Normal mode runs for about 10 minutes.

-High mode runs for about only 5 minutes due to rapid temperature rise.

-A temperature sensor is equipped inside of the hand-piece.

(In case the temperature rises, it stops the ultrasonic vibration and oscillation light blinks.)

-Automatic output control by TAF circuit, our unique technology.

(TAF oscillation circuit enables the most suitable output and vibration for cutting.)

-There are around 30 types of replacement blades.

(Such as curving blade, flat blade, long blade, filing plate(electrodeposited diamond) etc.)

Specifications

Oscillation	40kHz
External dimensions (Unit: mm)	Main unit (Generator): 173 × 89 × 76 (excluding protrusions) Hand-piece: φ32 × 144 (including blade)
Weight	Main unit (Generator): Approx. 300 g Hand-piece: Approx. 70g (including hand-piece cable)
Hand-piece cable	1.6 m (straight cable)
Max. power consumption	Max. 85 VA
Power Source	AC adapter　INPUT: 100 – 240 VAC 50/60 Hz　OUTPUT: 12 VDC
Circuit protection	The temperature sensor has installed inside the hand-piece
Ambient temperature	Temperature: 10 to 35℃ (No condensation)
Accessories	Standard blade (HA04): 1 pack (40 pcs./pack) Blade anchor (ZH04): 1 pc. Blade anchor screw (HB03): 3pcs. Hexagon wrench (RR02): 1 pc.
