BLG-5000 ZERO1-18 Brushless Screwdriver (High Speed)

Product Code : BL9965
Brand: HIOS
Availability: Đặt trước
Contact

Anyone can be a skilled craftsman in Just 30 Seconds

●Direct Teaching
Setting can be easily done by pressing a button. Time and effort for setting will be significantly saved by directly fastening several screws into the work pieces and allowing the driver to automatically learn the number of rotating pulses of the motor (the setting value is +10% of the maximum count and -10% of the minimum count) from the start to the completion of screw fastening.

●Pulse System
By counting the number of rotating pulses of the motor, the system precisely judges screw fastening errors such as the mixing of a wrong type of screw, a floating screw, a Cam out recess, a stripped screw hole and a cross threaded screw.

●Screw Counter
It displays the remaining number of screws to fasten every time a screw is fastened.

Specifications:

Start   Two-way(Push/Lever)Start Type
Output Torque Range N.m 0.5-1.5
Ibf・in 4.3-13
kgf・cm 5-15
Torque Switching   Stepless Adjustment
Unloaded Rotation Speed(r.p.m)

Low 1200
High 1800
Screw Size(mm) Screw size 2.3-3
Tapping 2-2.6
Bit

Hios shank H5 and 5HEX(both can be used)
Hex shank 1/4HEX
Power Supply Model BLC-70
External Dimensions(mm)

Grip 38
Length(mm) 235
Weight(g)   425
Accessories Bit H5 +♯1 (∅5.0×60mm)
+♯2 (∅5.0×60mm)
Bit 1/4HEX +♯1 (5.0×50mm)
+♯2 (5.0×50mm)
- (5.0×50mm)
Cord length(m) 2m(6p)
Lshaped hexwrench Width cross flats: 5mm,1pc

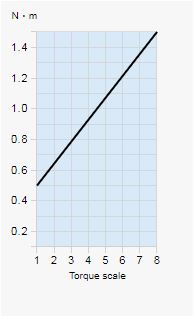

Torque Range Table
