BM Driver - Hantas

Product Code :
Brand: HANTAS
Availability: Đặt trước
Contact
BM driver is a reliable robotic spindle system engineered for accurate and repeatable torque control.
It is portable and works easily using Wi-Fi. Wireless driver make it easy to work even in hard-to-work spaces.
The BM driver have an internal storage device that can store a large number of tightenings.
Communicate with ParaMon Pro-X, you can automatically change the torque and manage the data history.

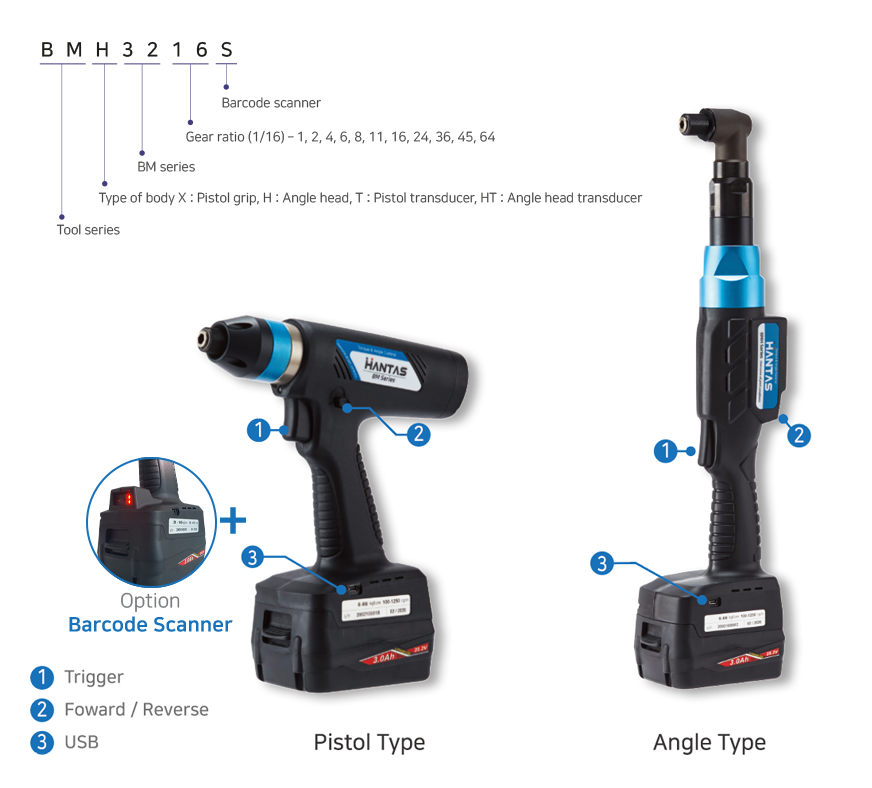

Driver List



Type Model Torque (Kfg.cm) RPM  Weight (Kg) Drive Size
Pistol BM3201  1 ~ 12 100 - 2000 0.88 Hex 1/4"
BM3202  2 ~ 22 100 - 2000  0.89 Hex 1/4"
 BM3204  4 ~ 45 100 - 1800  1.0 Hex 1/4" , SQ 3/8"
BM3206 6 ~ 66  100 - 1250  1.0 Hex 1/4" , SQ 3/8"
BM3211 15 ~ 115  50 - 690  1.1 Hex 1/4" , SQ 3/8"
BM3216  20 ~ 160  50 - 470  1.1 Hex 1/4" , SQ 3/8"
BM3224 40 ~ 240 50 - 310  1.1 Hex 1/4" , SQ 3/8"
Angle BMH3204  4 ~ 45 100 - 1800  1.37 Hex 1/4" , SQ 3/8"
BMH3206 6 ~ 66  100 - 1250  1.37 Hex 1/4" , SQ 3/8"
BMH3211 15 ~ 115  50 - 690  1.56 Hex 1/4" , SQ 3/8"
BMH3216  20 ~ 160  50 - 470  1.56 Hex 1/4" , SQ 3/8"
BMH3224  40 ~ 240 50 - 310  1.6 Hex 1/4" , SQ 3/8"
BMH3236 50 ~ 330 50 - 200  1.6 SQ 3/8"
 BMH3245 60 ~ 400  50 - 160  1.65 SQ 3/8", SQ 1/2"
BMH3264 80 ~ 500  50 - 115  1.9 SQ 3/8", SQ 1/2"

Driver Communication

[USB connection]


  • Initial network and parameter setting, data monitoring
  • Data download from the internal memory
  • Tool firmware update

[Wi-fi connection to BM controller]

  • Parameter setting, data monitoring and process guide, job managing
  • Fastening data saving in file system
  • Remote control

[Wi-fi connection to PC via AP]


  • Parameter setting, data monitoring on PC with ParaMon Air or custom software
  • Protocols are open for programming the custom software

[Flexible Function]

Standard Kit

[Package]

[Battery & Battery charger]
[Battery Charger]
Model  C25247A, HC1825A
 Input  AC220 - 240V, 50/60Hz, 1.1A
 Output  DC18 - 25.2V, 4.0A
 Fuse  250VAC T3.15A
 Operating environment  0 ~ 40℃ / 15 ~ 80% RH (without dew)
 Full charging time  50 min
 Safety class  Class II
 Weight  620 g

[Battery]

   Standard
 Model  BL25201
 Voltage  25.2 V
 No. of cell  3.6 V x 7
 Weight 400 g
 Power Display  Higher
