BMT Driver (wifi-connected) - Hantas

Product Code :
Brand: HANTAS
Availability: Đặt trước
Contact
BMT driver is a reliable robotic spindle system engineered for accurate and repeatable torque control. It can tightening more accurate torque by use torque sensor.
It is portable and works easily using Wi-Fi. Wireless driver make it easy to work even in hard-to-work spaces.
The BM driver have an internal storage device that can store a large number of tightenings.
Communicate with ParaMon Pro-X, you can automatically change the torque and manage the data history.

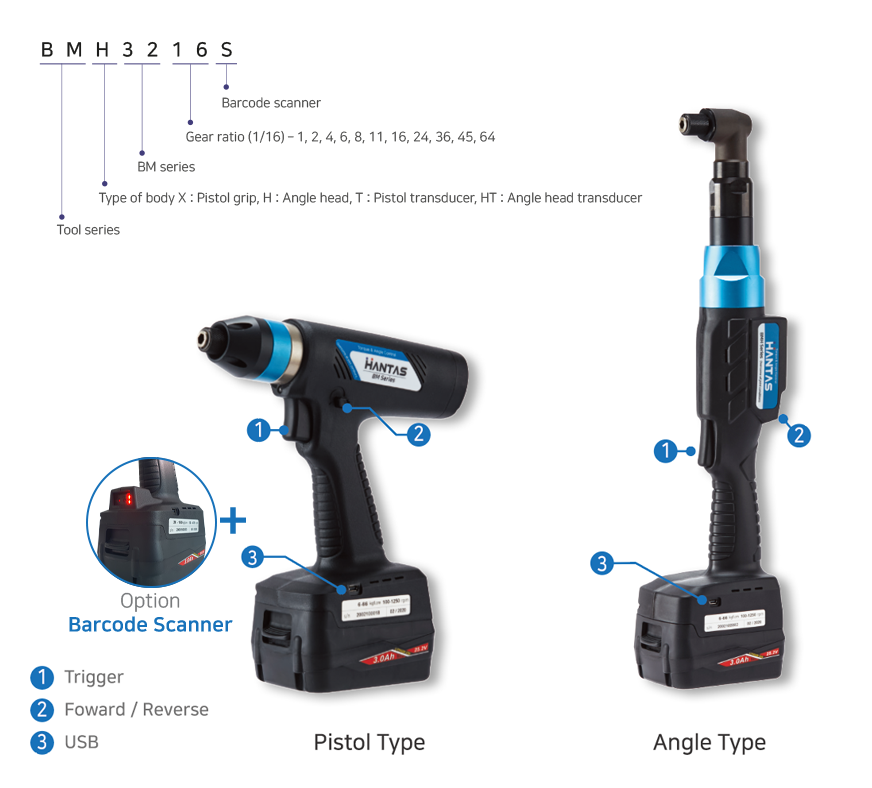

Driver List

Type Model Torque (N.m) RPM  Weight (Kg) Drive Size
Pistol
BMT3204 0.4 ~ 4.5 100 - 1800  1.0 Hex 1/4" , SQ 3/8"
BMT3206 0.6 ~ 6.5  100 - 1250  1.0 Hex 1/4" , SQ 3/8"
BMT3211 1.5 ~ 11.5  50 - 690  1.1 Hex 1/4" , SQ 3/8"
BMT3216 2.0 ~ 16.0  50 - 470  1.1 Hex 1/4" , SQ 3/8"
BMT3224 4.0 ~ 24.0 50 - 310 1.1 Hex 1/4" , SQ 3/8"
Angle
BMTH3204 0.4 ~ 4.5 100 - 1800  1.37 Hex 1/4" , SQ 3/8"
BMTH3206 0.6 ~ 6.5  100 - 1250  1.37 Hex 1/4" , SQ 3/8"
BMTH3211 1.5 ~ 11.5  50 - 690  1.56 Hex 1/4" , SQ 3/8"
BMTH3216 2.0 ~ 16.0  50 - 470  1.56 Hex 1/4" , SQ 3/8"
BMTH3224 4.0 ~ 24.0 50 - 310 1.6 Hex 1/4" , SQ 3/8"
BMTH3236 5.0 ~ 32.0 50 - 200  1.9 SQ 3/8"
BMTH3245 6.0 ~ 38.0 50 - 160 1.65 SQ 1/2" , SQ 3/8"
BMTH3264 8.0 ~ 50.0 50 - 115  1.9 SQ 1/2" , SQ 3/8"

Driver Communication

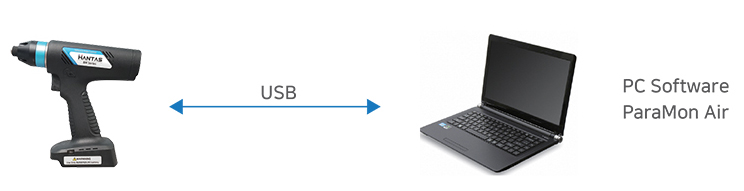

[USB connection]

  • Initial network and parameter setting, data monitoring
  • Data download from the internal memory
  • Tool firmware update

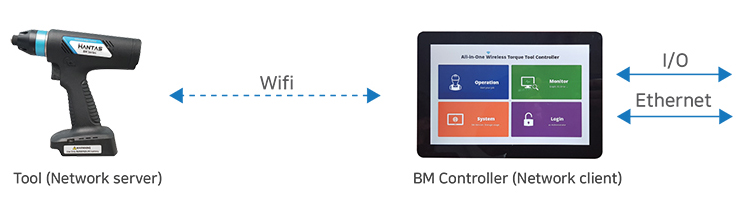

[Wi-fi connection to BM controller]

  • Parameter setting, data monitoring and process guide, job managing
  • Fastening data saving in file system
  • Remote control

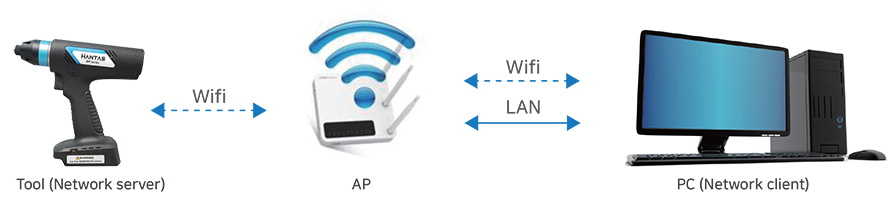

[Wi-fi connection to PC via AP]

  • Parameter setting, data monitoring on PC with ParaMon Air or custom software
  • Protocols are open for programming the custom software

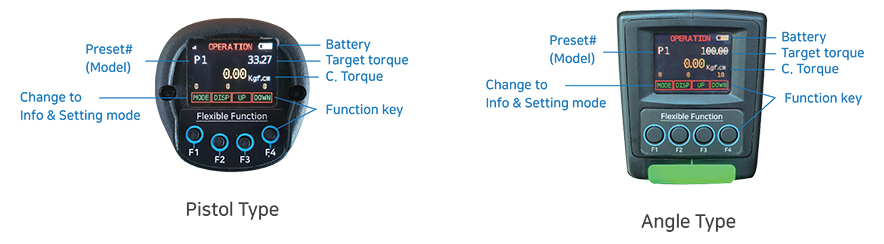

[Flexible Function]

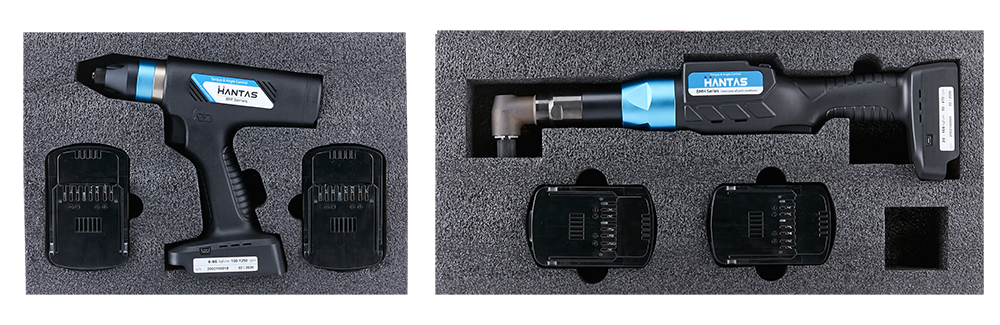

Standard Kit

[Package]

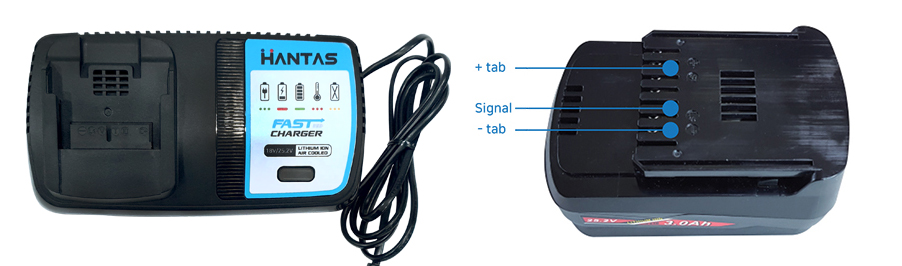

[Battery & Battery charger]


[Battery Charger]

Model  C25247A, HC1825A
 Input  AC220 - 240V, 50/60Hz, 1.1A
 Output  DC18 - 25.2V, 4.0A
 Fuse  250VAC T3.15A
 Operating environment  0 ~ 40℃ / 15 ~ 80% RH (without dew)
 Full charging time  50 min
 Safety class  Class II
 Weight  620 g

[Battery]

   Standard
 Model  BL25201
 Voltage  25.2 V
 No. of cell  3.6 V x 7
 Weight 400 g
 Power Display  Higher
