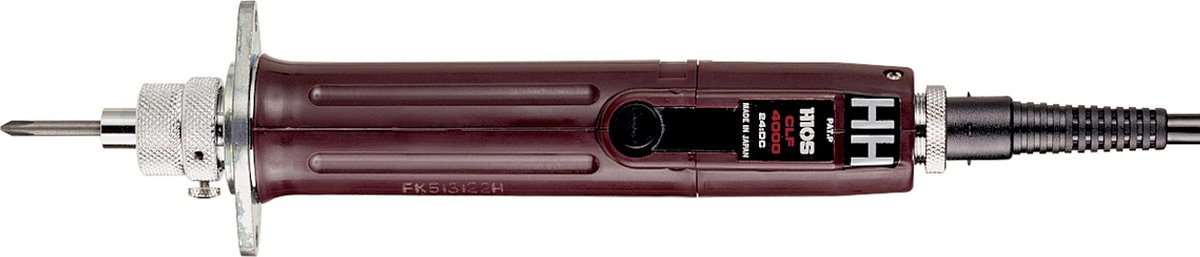

CLF-4000 Brush Screwdrivers (Automated Applications)

Product Code : CL4758
Brand: HIOS
Availability: Đặt trước
Contact

The Screwdriver CLF-4000 is most suitable for automation assembly Machines because it can be installed into the XY robot.

Stable torque accuracy helps uniform screw tightening for automation.
Easy to install to the existing system.

Specifications:

Output Torque Range N.m 0.1-0.35
Ibf・in 0.9-3.1
kgf・cm 1-3.5
Torque Switching   Stepless Adjustment
Unloaded Rotation Speed(r.p.m) Low 560
High 1000
Screw Size(mm) Screw size 1.4-2.6
Tapping 1.4-2.3
Power supply Model CLT-AY-61
External Dimensions(mm) Grip 32.5
  Length(mm) 197
 Weight   430
Spring color   Blue
Accessories Cord length (m) 3m(5p)
Carbonbrush model number  1 pair  CL4-0420
Torque Range Table



How to read a model number of a screwdriver for automatic assembly machines

How to read a model number of a screwdriver for automatic assembly machines
List of symbol combinations
HH HIOS shank + HIOS power supply
HN HIOS shank + Nitto Seiko power supply
XH HEX shank + HIOS power supply
XN HEX shank + Nitto Seiko power supply
