| List of symbol combinations | |
|---|---|
| HH | HIOS shank + HIOS power supply |
| HN | HIOS shank + Nitto Seiko power supply |
| XH | HEX shank + HIOS power supply |
| XN | HEX shank + Nitto Seiko power supply |

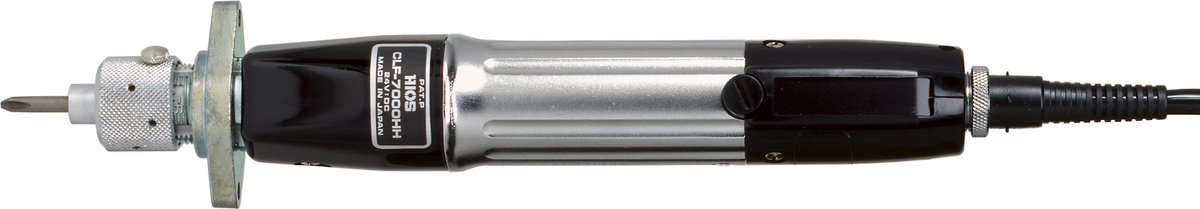

Most suitable for automation assembly Machines because it can be installed into the XY robot
Stable torque accuracy helps uniform screw tightening for automation.
Easy to install to the existing system .
Specifications:
| Output Torque Range | N.m | 0.4-1 |
| Ibf・in | 3.5-9 | |
| kgf・cm | 4-10 | |
| Torque Switching | Stepless Adjustment | |
| Unloaded Rotation Speed(r.p.m) | Low | 440 |
| High | 850 | |
| Screw Size(mm) | Screw size | 2-3 |
| Tapping | 2-3 | |
| Power supply | Model | CLT-AY-61 |
| External Dimensions(mm) | Grip | 37 |
| Length(mm) | 234 | |
| Weight | 670 | |
| Spring color | White | |
| Accessories | Cord length (m) | 3m(5p) |
| Carbonbrush model number | 1 pair | CL65-0490 |
| Torque Range Table |  |
| List of symbol combinations | |
|---|---|
| HH | HIOS shank + HIOS power supply |
| HN | HIOS shank + Nitto Seiko power supply |
| XH | HEX shank + HIOS power supply |
| XN | HEX shank + Nitto Seiko power supply |
|
|
|
|
|
|
|
|
|
|
123456Torque scale0.00.20.40.60.81.01.2N・mBrown(Installed)White(Acssesorie)★ |
