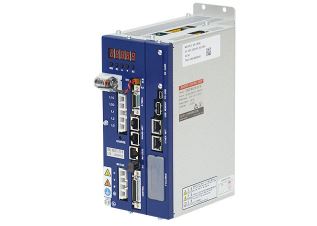

Bộ điều khiển đơn giản này có thể được sử dụng để điều khiển bất kỳ dụng cụ cố định của ESTIC nào. Nó cũng được trang bị các chức năng đảm bảo quá trình siết chặt đạt chất lượng cao.
Specifications:
ENRZ-MAU55
| Item | ENRZ-MAU55-20-* | ENRZ-MAU55-40-* | ||
|---|---|---|---|---|
| Main Power Supply | Three Phase 200-230V AC 50/60Hz | |||
| Control Power Supply Voltage | Single Phase 200-230V AC 50/60Hz | |||
| Display / Operation | 5 Characters x 1 Digit 7-segment LED Display Function Keys (5) Indicator Lamp (NG/OK/ALM) |
|||
| Control Input (PIN) | Photocoupler Isolation 16 Points (24V DC, Draw-in Current 6mA/Point) Both sink (- common) and source (+ common) connections can be made |
|||
| Control Output (POUT) | Photo MOS Output 16 Points (24V DC, Max. 50mA/Point) Both sink (- common) and source (+ common) connections can be made |
|||
| Maximum Number of Programs | 99 Programs | |||
| Maximum Number of JOBs | 99 Job (can be set up to 50 step/JOB) | |||
| SS Function | Safe Stop Function (Motor power source is cut off without disconnecting power supply or motor cable.) |
|||
| External Communication Port | RS-232C: 1 Port (Switchable from 9600bps to 115.2kbps) NET (RS-485): 2 Ports Ethernet Connection Port 10/100 BASE-T (RJ45): 2 Ports PC-USB (Mini-B) |
|||
| Fieldbus (Option) |
DeviceNet, PROFIBUS, CC-Link, EtherNet/IP, PROFINET, EtherCAT, CC-Link IE | |||
| Memory Function | FROM: Tightening Program, System Parameters, I/O Assignment, Tightening Result Assignment Items, etc. Memory Card: FROM Backups and Historical Data USB Memory: For Data Import/Export Battery: Calendar Function |
|||
| Tightening Result History | Maximum 20,000 (Varies Depending on Settings) | |||
| Torque Curve History | Maximum 50 (Varies Depending on Settings) | |||
| System Error History | Maximum 200 | |||
| Other | Free Assignment Function (Control I/O Signal, Tightening Result Data Item), Identifier Function, Sequence Function | |||
| Control Power Capacity | 50 VA | |||
| Main Power Capacity (During Rated Operation) | 0.2 kVA | 0.3 kVA | 0.4 kVA | 0.7 kVA |
| Inrush Current Value When Control Power is Turned on | Approx. 26 Ao-p (Convergence Time: 5ms) | |||
| Inrush Current Value When Main Power is Turned on | Approx. 6 Ao-p (Convergence Time: 400ms) | |||
| External Dimensions (mm) | W90.8 × H222 × D170.4 | W109.8 × H222 × D170.4 | ||
| Weight (kg) | Approx. 2.7 | Approx. 3.2 | ||
ENRZ-AU55
| Item | ENRZ-AU55-20 | ENRZ-AU55-40 | ||
|---|---|---|---|---|
| Main Power Supply | Three Phase 200-230V AC 50/60Hz | |||
| Control Power Supply Voltage | Single Phase 200-230V AC 50/60Hz | |||
| Display / Operation | 5 Characters x 1 Digit 7-segment LED Display Function Keys (5) Indicator Lamp (NG/OK/ALM) |
|||
| SS Function | Safe Stop Function (Motor power source is cut off without disconnecting power supply or motor cable.) |
|||
| External Communication Port | NET (RS-485): 2 Ports | |||
| Control Power Capacity | 50 VA | |||
| Main Power Capacity (During Rated Operation) | 0.2 kVA | 0.3 kVA | 0.4 kVA | 0.7 kVA |
| Inrush Current Value When Control Power is Turned on | Approx. 26 Ao-p (Convergence Time: 5ms) | |||
| Inrush Current Value When Main Power is Turned on | Approx. 6 Ao-p (Convergence Time: 400ms) | |||
| External Dimensions (mm) | W60 × H222 × D170.4 | W79 × H222 × D170.4 | ||
| Weight (kg) | Approx. 2.2 | Approx. 2.7 | ||
