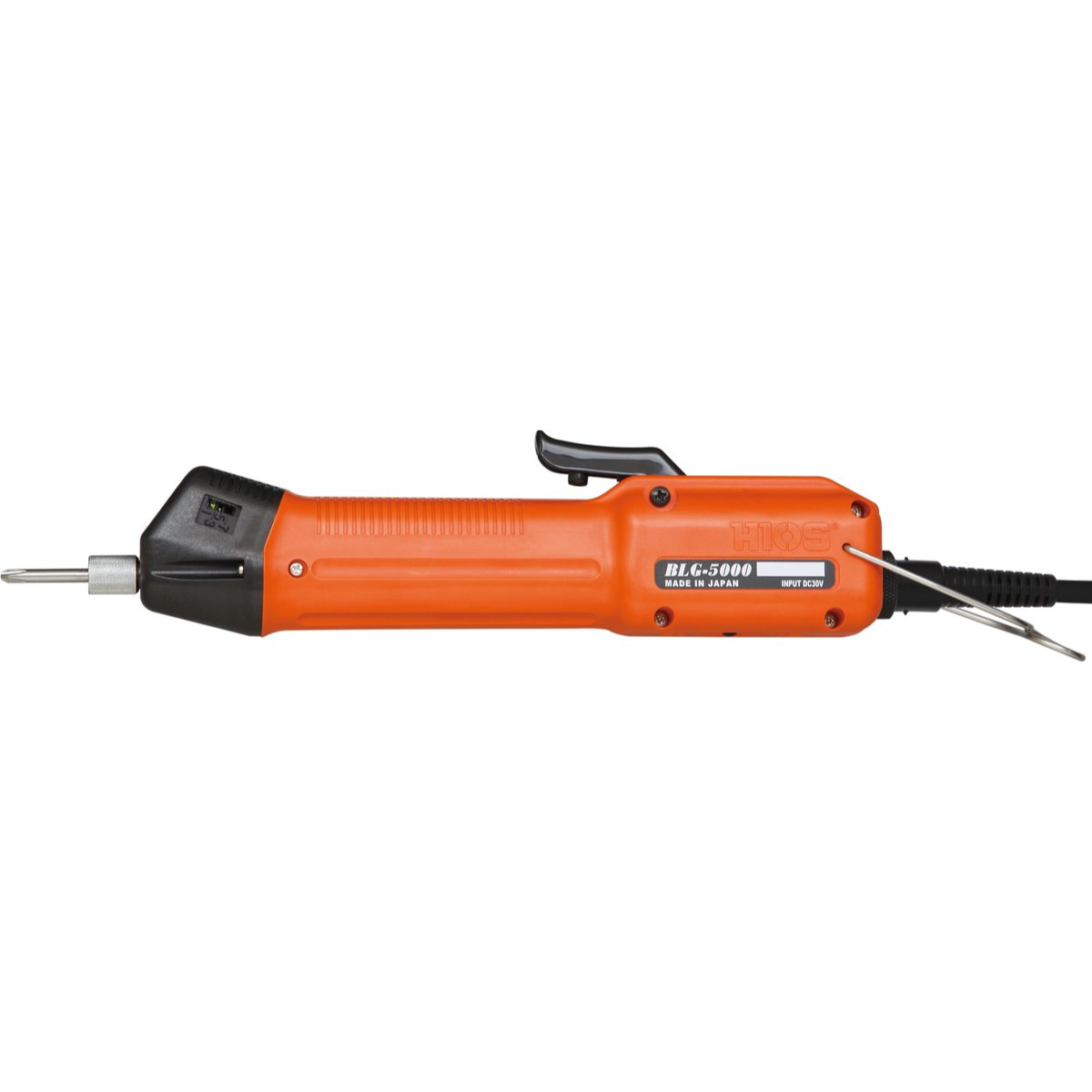

The New Industry Benchmark in Electric Torque Drivers
The BLG series has the performance, quality and durability equivalent to existing brushless screwdrivers (e.g., BL series), plus better maintenance efficiency.
You can smoothly shift from a brushed screwdriver (e.g., CL and α series) to a brushless screwdriver (e.g., BLG series) without significant cost increase.NEW Brushless is easy to disassemble and assemble
During maintenance due to unitization of internal parts as well as performance, quality and durability!
It has performance, quality and durability that are in line with conventional brushless (BL type), and it has improved maintenance more.
Transition from brush driver (CL, α type) to brushless (BLG type) can be done smoothly without cost burden.
Specifications:
| Start | Two-way(Push/Lever)Start Type | |
| Output Torque Range | N.m | 0.2-1.2 |
| Ibf・in | 1.7-10 | |
| kgf・cm | 2-12 | |
| Torque Switching | Stepless Adjustment | |
| Unloaded Rotation Speed(r.p.m) | Low | 690 |
| High | 1000 | |
| Screw Size(mm) | Screw size | 2.3-3 |
| Tapping | 2-3 | |
| Bit |
Hios shank | H4 |
| Hex shank | H5 and 5HEX(both can be used) or 1/4HEX | |
| Power Supply | Model | BLC-45 BLC-70 |
| External Dimensions(mm) |
Grip | Min 32 Max 38 |
| Length(mm) | 235 | |
| Weight(g) | 425 | |
| Accessories | Bit H4 | +♯1 (∅4.0×40mm) +♯2 (∅4.0×40mm) |
| Bit H5 | +♯1 (∅5.0×60mm) +♯2 (∅5.0×60mm) |
|
| Bit 1/4HEX | +♯1 (5.0×50mm) +♯2 (5.0×50mm) - (5.0×50mm) |
|
| Cord length(m) | 1m(5p) | |
| Lshaped hexwrench | Width cross flats:5mm,1pc | |
| Torque Range Table |  |
