BPT Driver - Hantas

Product Code :
Brand: HANTAS
Availability: Đặt trước
Contact

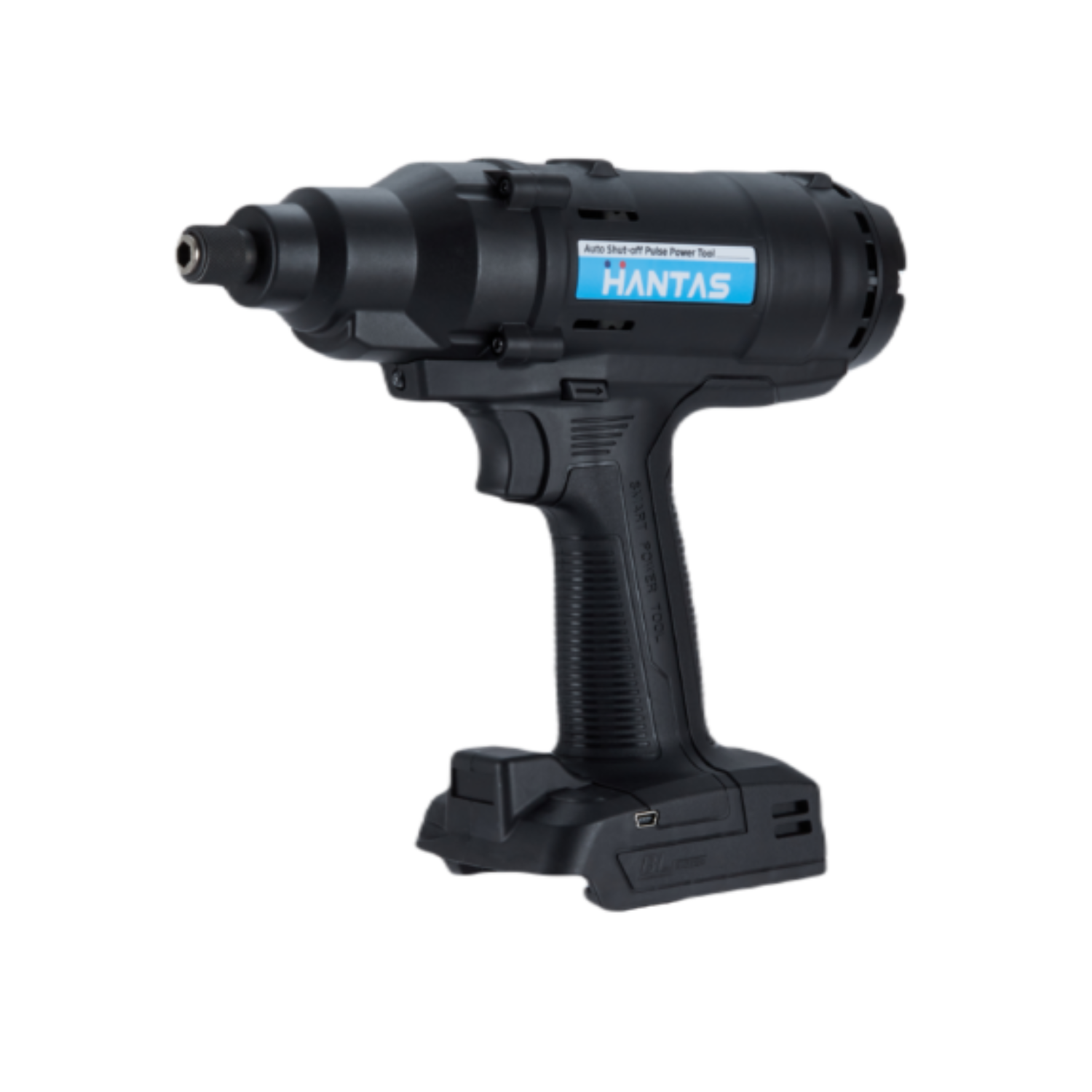

BPT driver uses a pulse unit to control torque.
Low repel force even at high torque reduces operator fatigue.
It is portable and works easily using Wi-Fi. Wireless driver make it easy to work even in hard-to-work spaces.

Real-time torque and status can be checked through the LCD.
The BPT driver have an internal storage device that can store tightening results.

Communicate with ParaMon Pro-X, you can automatically change the torque and manage the data history.

Driver List

Model Torque (N.m) RPM Weight (kg)
BPT 20 6 ~ 20 500 ~ 3200 1.26
BPT 45 11 ~45 1000 ~ 3200 1.26
BPT 60 20 ~ 60 1000 ~ 3200 1.44

Driver Communication

[USB connection]

  • Initial network and parameter setting, data monitoring
  • Data download from the internal memory
  • Tool firmware update

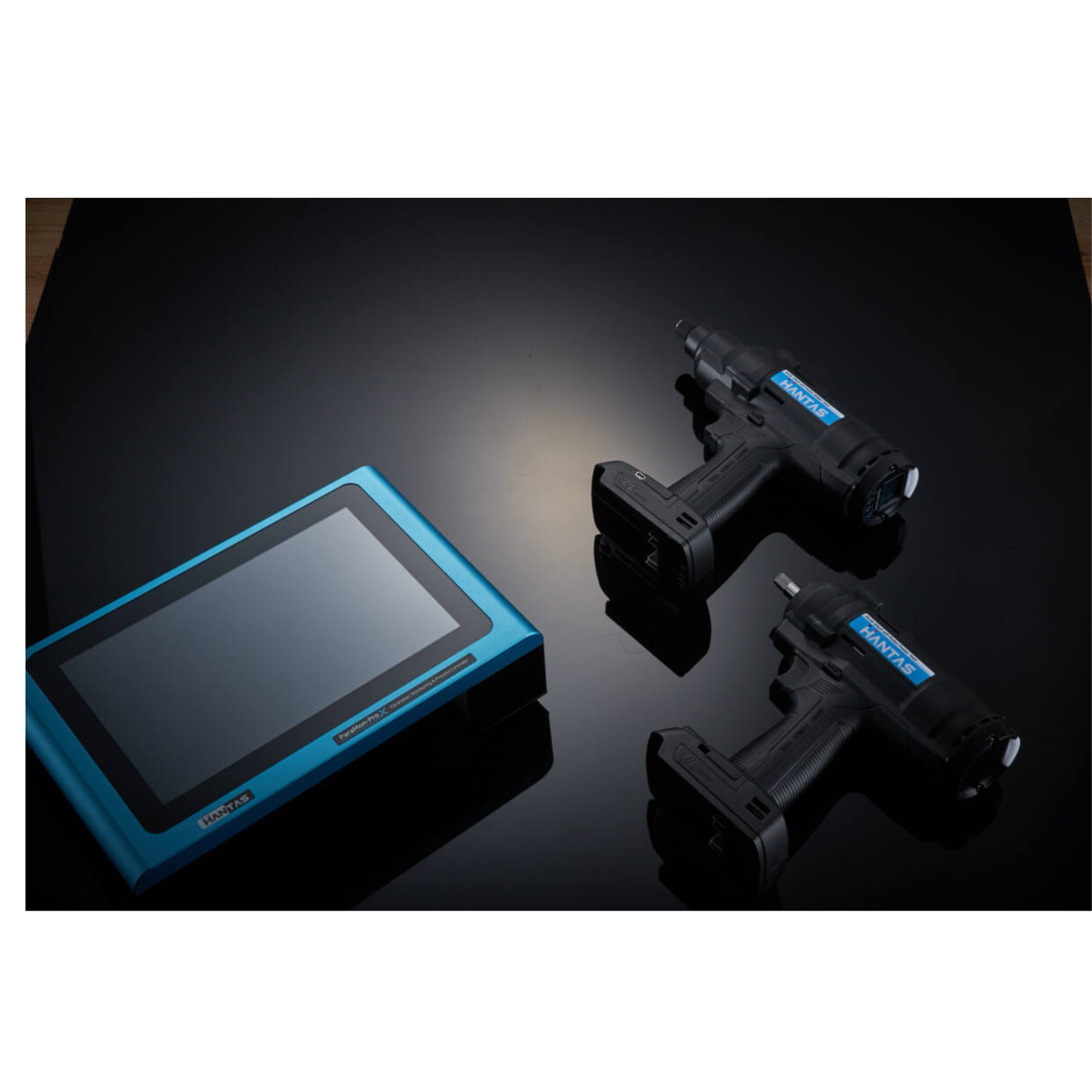

[Wi-fi connection to BPT controller]

  • Parameter setting, data monitoring and process guide, job managing
  • Fastening data saving in file system
  • Remote control

[Wi-fi connection to PC via AP]

  • Parameter setting, data monitoring on PC with ParaMon Air or custom software
  • Protocols are open for programming the custom software

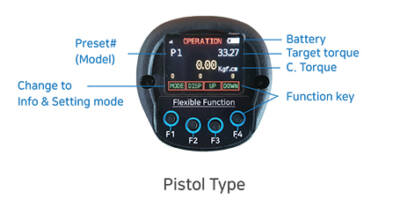

[Flexible Function]

Standard Kit

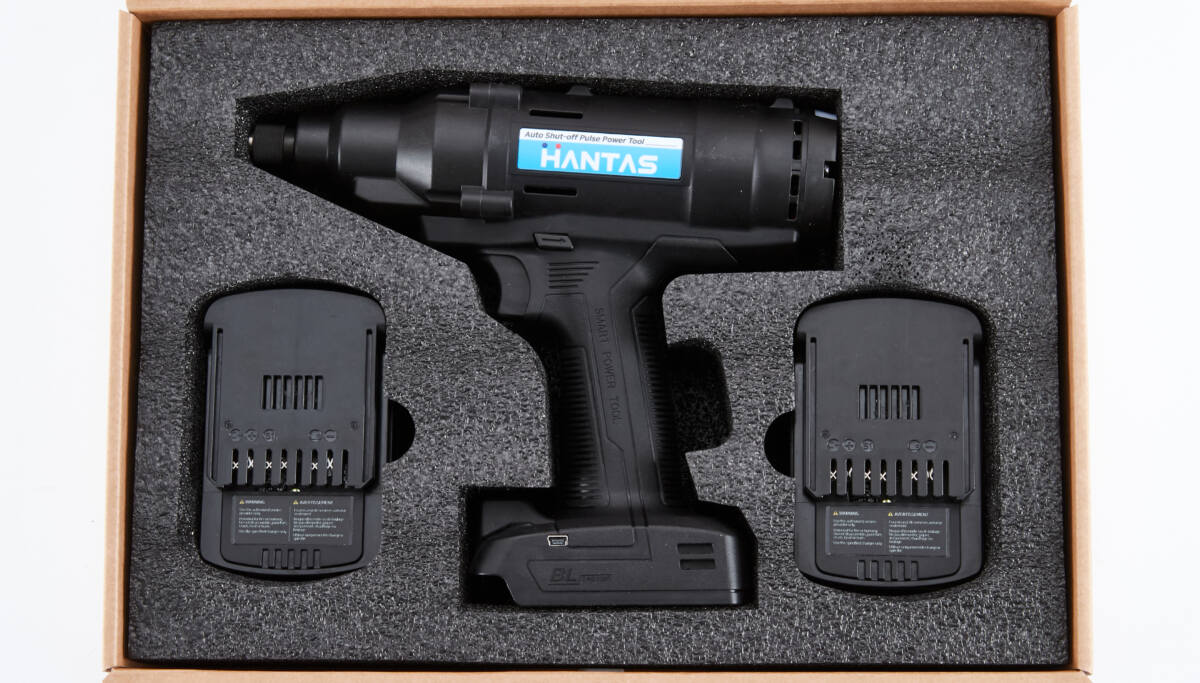

[Package]

[Battery & Battery charger]


[Battery Charger]

Model  C25247A, HC1825A
 Input  AC220 - 240V, 50/60Hz, 1.1A
 Output  DC18 - 25.2V, 4.0A
 Fuse  250VAC T3.15A
 Operating environment  0 ~ 40℃ / 15 ~ 80% RH (without dew)
 Full charging time  50 min
 Safety class  Class II
 Weight  620 g

[Battery]

   Standard
 Model  BL25201
 Voltage  25.2 V
 No. of cell  3.6 V x 7
 Weight 400 g
 Power Display  Higher
