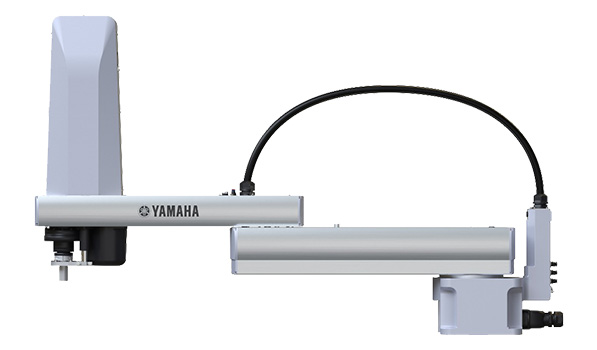

Large type SCARA robots YK-XG
Large type SCARA robots YK-XG

Large type SCARA robots YK-XG

Product Code : LA5442
Brand: YAMAHA
Availability: Đặt trước
Contact

Suitable for assembly and transfer of large objects or heavy objects.

  • Arm length: 700mm to 1200mm
  • Maximum payload: 10kg to 50kg

Features

  • Internal structure achieving the high-rigidity and high-accuracy
  • Completely beltless structure
  • High speed
  • Improved maintenance features
  • Robot R axis inertia moment capacity
  • Compact
  • Environmentally rugged resolver provides closed loop control
  • Zone control (=Automatically sets the maximum acceleration/deceleration) function
  • Hollow shaft and tool flange options are selectable

Specification

Model Arm length(mm) Maximum payload(kg) Standard cycle time(sec)
YK700XGL 700 10.0(Tool flange option 9.0) 0.50
YK700XG 700 20.0(Tool flange option 19.0) 0.42
YK800XG 800 0.48
YK900XG 900 0.49
YK1000XG 1000
YK1200X 1200 50.0 0.91
YK1200XG 1200 50.0 with 2 kg payload 0.55sec
with 5 kg payload 0.61sec
with 40 kg payload 0.92sec
