You can choose the most suitable one from three types of shapes: angle tool, pistol tool, and straight tool. The pistol tool is also available as a top-mounted cable type with the cable position at the top.

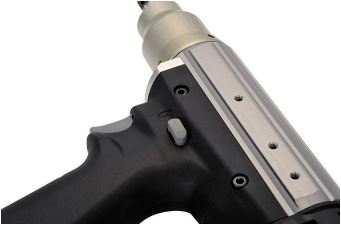

Our ergonomic handle design features a trigger that can be comfortably pulled with one finger. One handed work is easy in this configuration. Tightening of 120N･m ( 88.5 ft-lb ) is possible by attaching a reaction arm. With ESTIC pulse, one-handed tightening up to 70 N･m ( 51.6 ft-lb ) is easy with minimal reaction force.
| Model | Type | Torque Range | Max. Speed (rpm) | Drive Shaft | Weight | Length | Pulse Drive | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N･m | ft-lb | 200V AC input *1 | 100V AC input | mm | in | kg | lb | mm | in | |||
| EH2-R0005-P | DIRECT TOOLS | 1-5 | 0.7-3.7 | 2543 | 1695 | 9.5 sq | 3/8 | 1.1 | 2.43 | 202 | 8.0 | ✓ |
| EH2-R0010-P | 2-10 | 1.5-7.4 | 1415 | 943 | 9.5 sq | 3/8 | 1.1 | 2.43 | 202 | 8.0 | ✓ | |
| EH2-R1016-P | 3.2-16 | 2.4-11.8 | 1871 | 1247 | 9.5 sq | 3/8 | 1.4 | 3.09 | 220 | 8.7 | ✓ | |
| EH2-R1016-PH | 3.2-16 | 2.4-11.8 | 1871 | 1247 | 9.5 sq | 3/8 | 1.4 | 3.09 | 220 | 8.7 | ✓ | |
| EH2-R1020-P | 4-20 | 3.0-14.8 | 1580 | 1053 | 9.5 sq | 3/8 | 1.4 | 3.09 | 220 | 8.7 | ✓ | |
| EH2-R1020-PH | 4-20 | 3.0-14.8 | 1580 | 1053 | 9.5 sq | 3/8 | 1.4 | 3.09 | 220 | 8.7 | ✓ | |
| EH2-R2085-PH | 17-85 | 12.5-62.7 | 605 | 403 | 12.7 sq | 1/2 | 2.7 | 5.95 | 335 | 13.2 | ||
| EH2-R2120-PH | 24-120 | 17.7-88.5 | 438 | 292 | 12.7 sq | 1/2 | 2.8 | 6.17 | 335 | 13.2 | ||
| EH2-H0015-P | PULSE TOOLS ESTIC PULSE HS |
3-15 | 2.2-11.1 | 3075 | 2000 | 9.5 sq | 3/8 | 1.2 | 2.65 | 204 | 8.0 | ✓ |
| EH2-H1030-P | 6-30 | 4.4-22.1 | 3075 | 2000 | 9.5 sq | 3/8 | 1.4 | 3.09 | 223 | 8.8 | ✓ | |
| EH2-S1050-P | 10-50 | 7.4-36.9 | 2121 | 1400 | 12.7 sq | 1/2 | 1.7 | 3.75 | 252 | 9.9 | ✓ | |
| EH2-T0050-P | PULSE TOOLS ESTIC PULSE T |
10-50 | 7.4-36.9 | 2121 | 1400 | 12.7 sq | 1/2 | 1.5 | 3.31 | 223 | 8.8 | ✓ |
| EH2-T0070-P | 14-70 | 10.3-51.6 | 1432 | 954 | 12.7 sq | 1/2 | 1.6 | 3.53 | 227 | 8.9 | ✓ | |
Max. speed is able to set on the parameter SP. HIGH SPD when AC200V is supplied (expect EH2-R3***-*).
